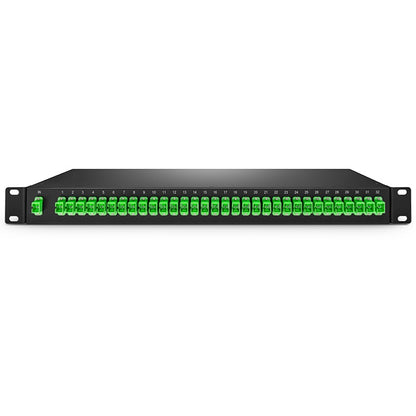

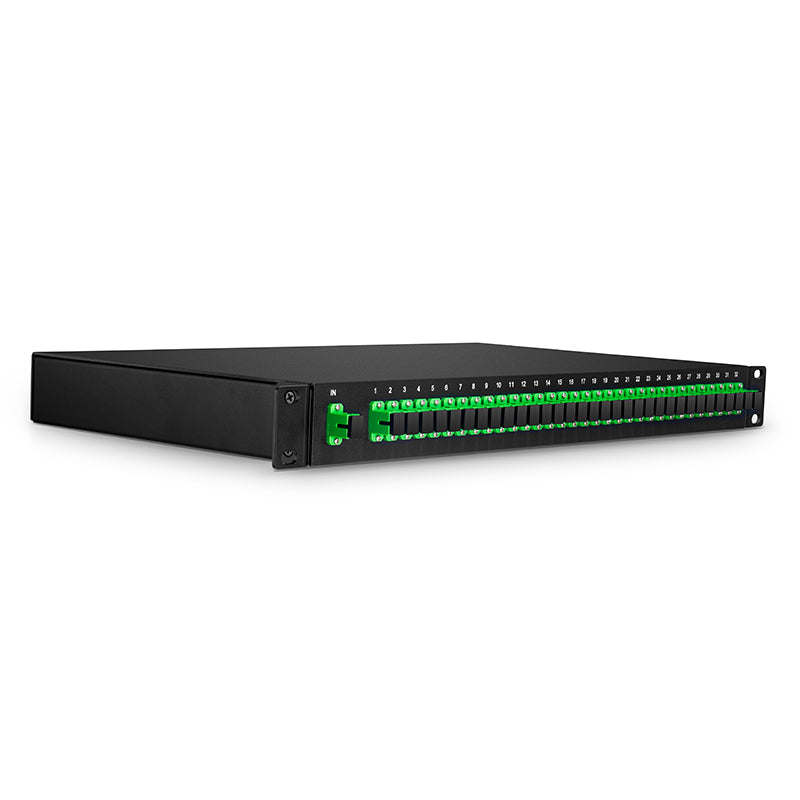

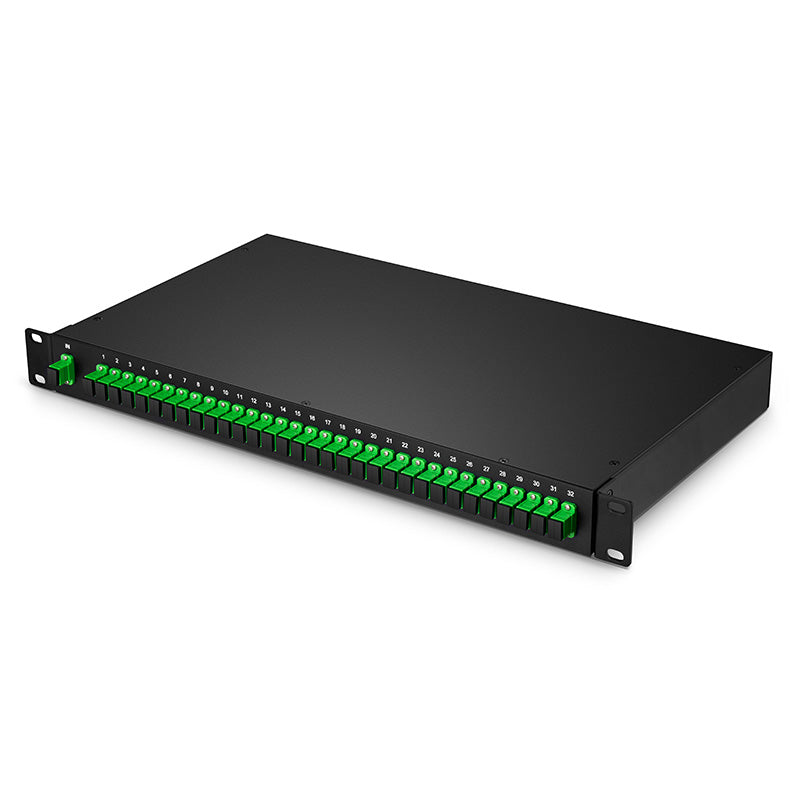

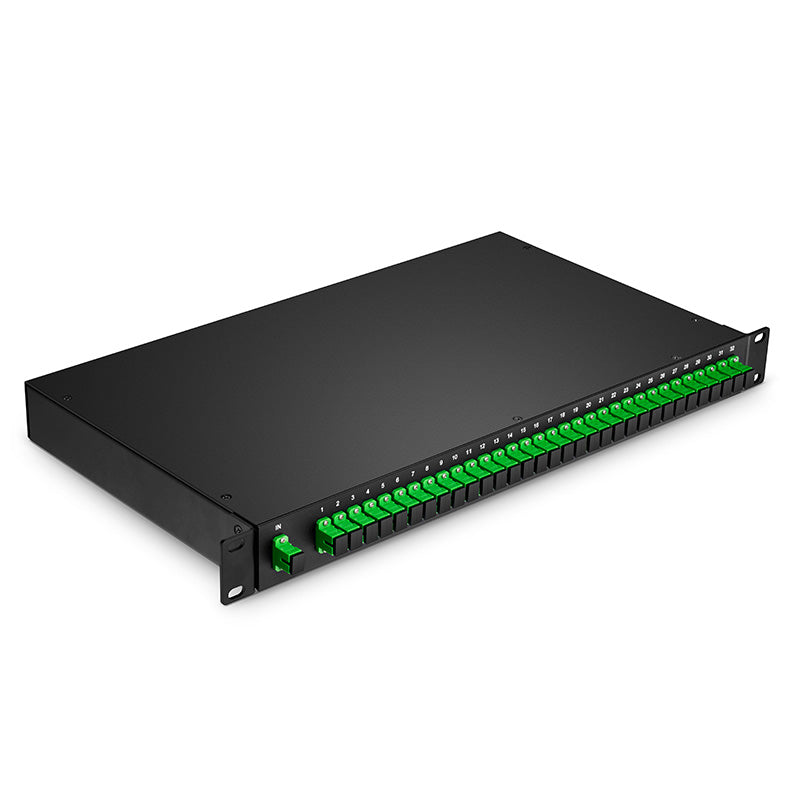

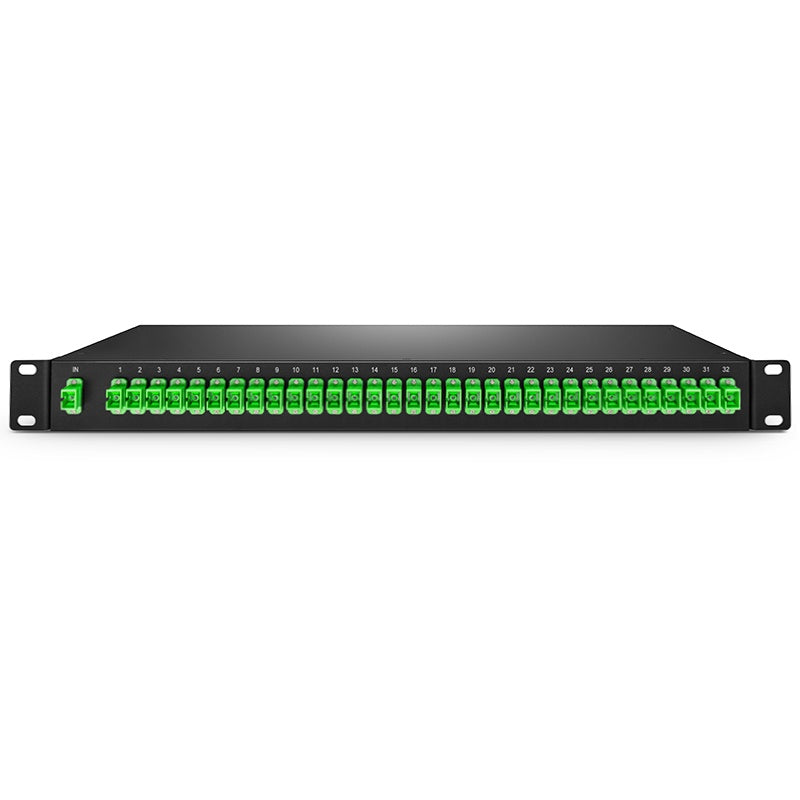

The 19-inch rack-mount PLC splitters are specifically designed for standard 19" racks, making them ideal for data centers or server rooms with high wiring density requirements. They feature low insertion loss, low polarization-dependent loss, and consistent port performance. Available in 1×N and 2×N channel configurations with SC connectors, including 1×2 to 1×64 and 2×2 to 2×64 1U Rack Mount type fiber PLC splitters.
These splitters are encased in a metal box, offering easy installation in fiber optic applications and extensively used in Fiber To The Home (FTTH) networks, adhering to PON standards like GPON and XGS-PON.
The rack-mount PLC splitter not only available in a variety of split ratios and package types, and housing, split ratio, and connector options can be customized according to customer requirement.
The PLC splitter is insensitive to wavelength and supports signal transmission from 1260 to 1650 nm, ensuring compatibility and flexibility. It's built for current network demands and future upgrades, delivering reliable performance and investment protection.

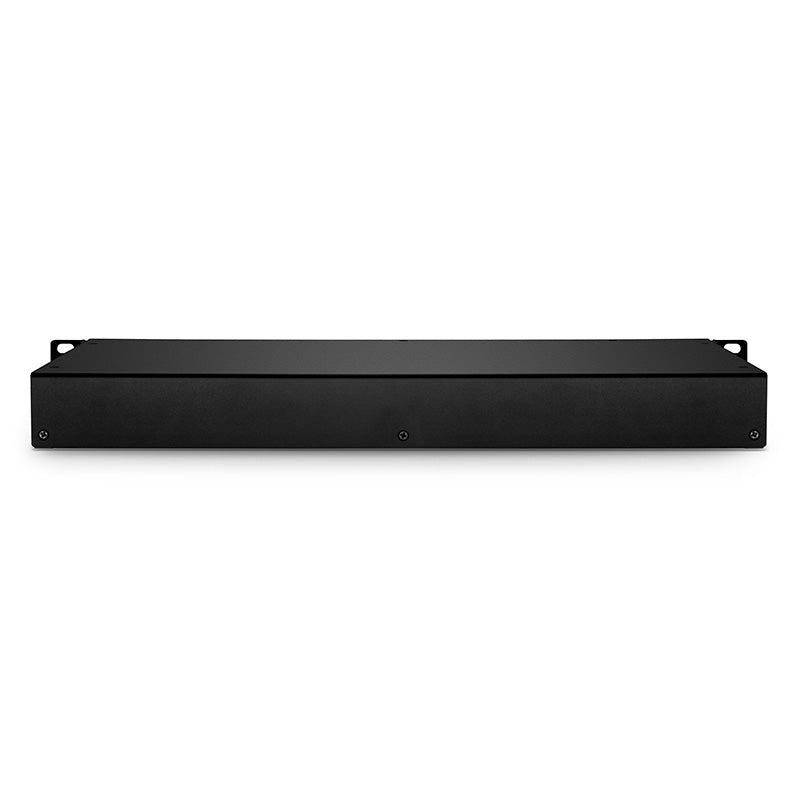

Made of aluminum alloy and resistant to dust and heat, the 1U rack enclosure can well protect fibers, convenient for installation and maintenance.
Optical splitter has played an important role in passive optical networks (like EPON, GPON, BPON, FTTX, FTTH, etc.) by allowing a single PON Interface to be shared among many subscribers.
|
Parameter
|
1x32
|
1x16
|
|
Operating Wavelength (nm)
|
1260~1650nm
|
1260~1650nm
|
|
Connector Type
|
SC/APC
|
SC/APC
|
|
Insertion Loss, Max. (dB)
|
16.9dB
|
13.8dB
|
|
Insertion Loss Uniformity(Max.)
|
1.5dB
|
1.2dB
|
|
PDL, Max. (dB)
|
0.3dB
|
0.3dB
|
|
Return Loss, Min. (dB)
|
55dB
|
55dB
|
|
Directivity Min. (dB)
|
55dB
|
55dB
|
|
Fibre Type
|
G.657A1
|
G.657A1
|
|
Dimensions (HxWxD)
|
1.73"x19.00"x9.84" (44x482.6x250mm)
|
1.73"x19.00"x9.84" (44x482.6x250mm)
|
