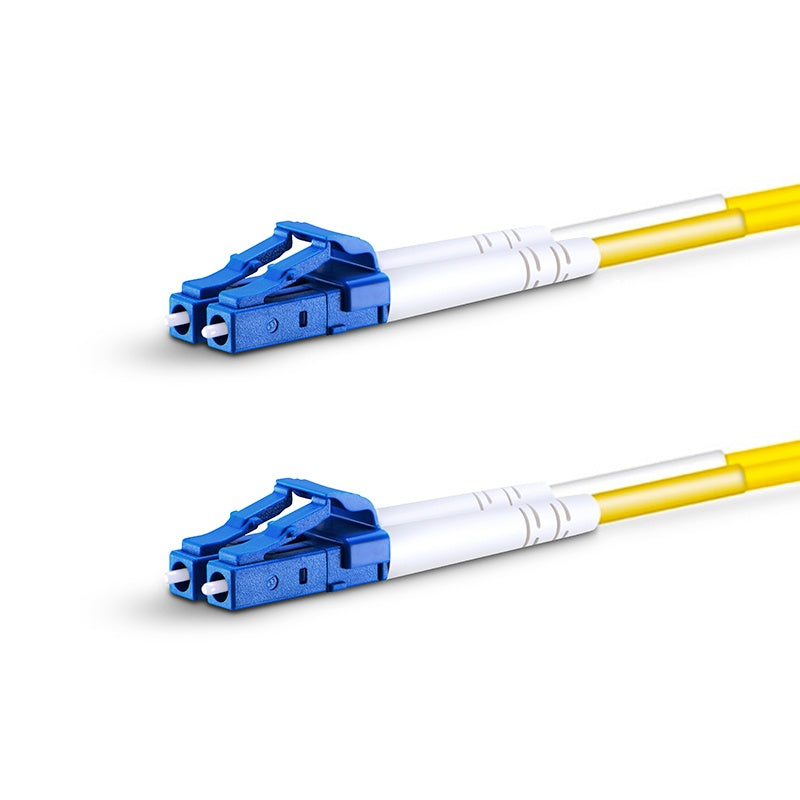

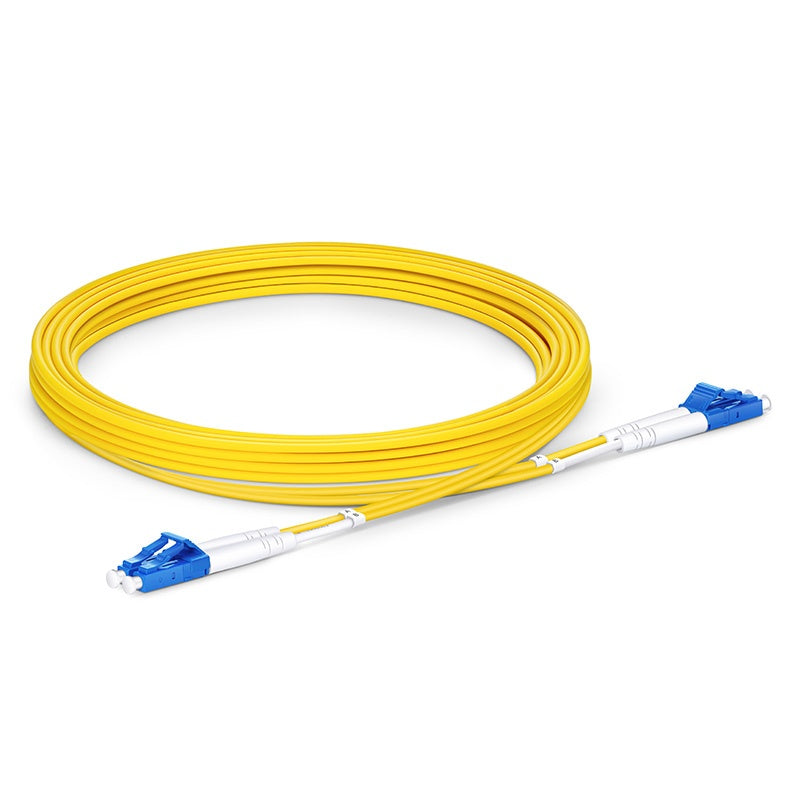

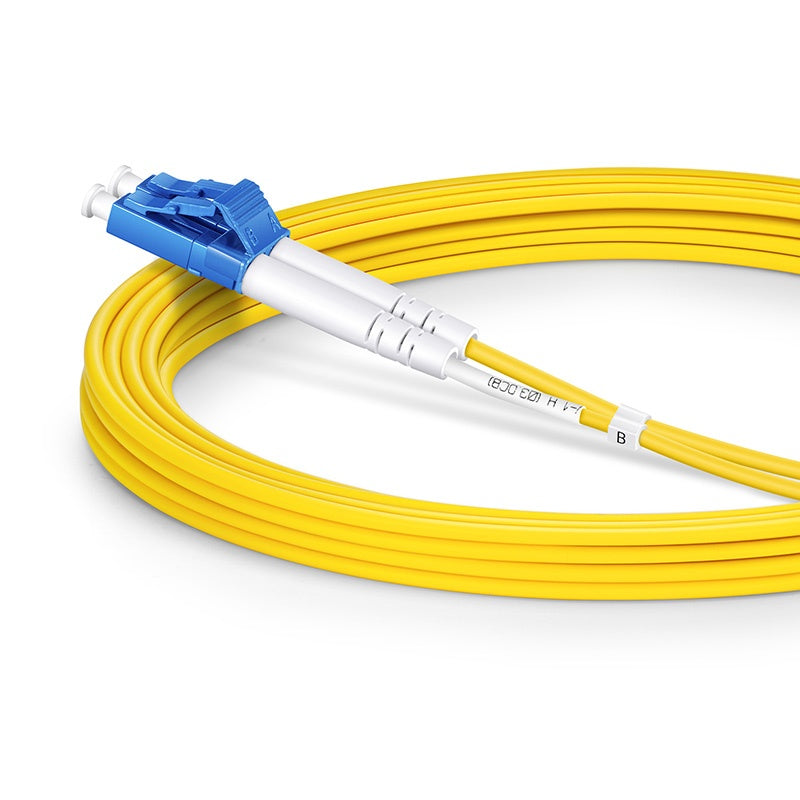

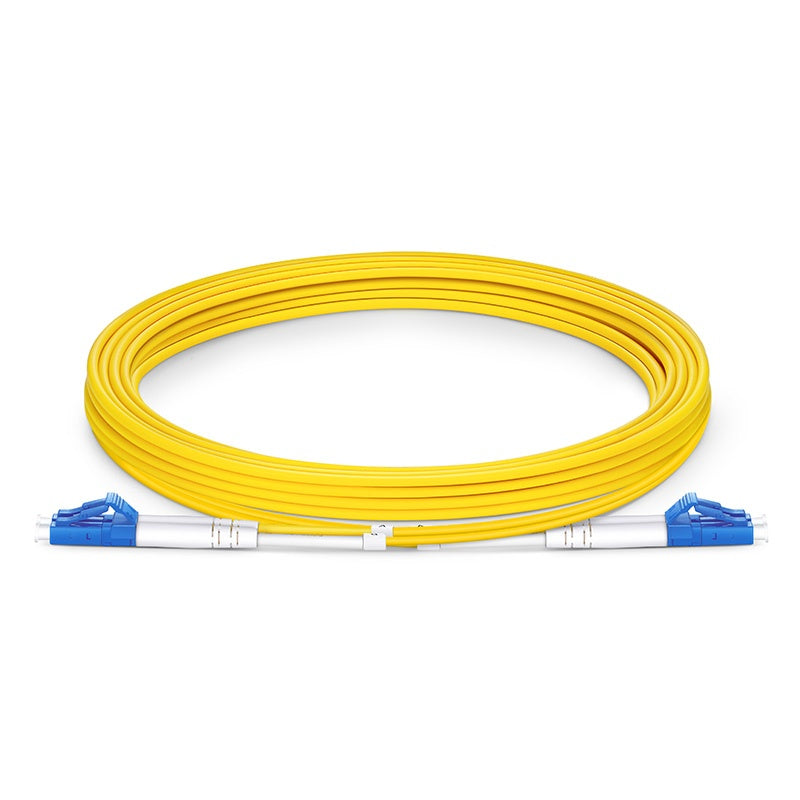

Fiber Patch Cable 3M (10FT), 2 Fibers, LC/UPC Duplex TO LC/UPC Duplex, OS2 Single Mode, Riser(OFNR), 0.9MM, Tight-Buffered, Yellow

Name: Fiber Patch Cable 3M (10FT), 2 Fibers, LC/UPC Duplex TO LC/UPC Duplex, OS2 Single Mode, Riser(OFNR), 0.9MM, Tight-Buffered, Yellow
Brand: Optic Builds
SKU: JMP-LCUPC-3M-018
Price: 9.50 USD
Availability: InStock

$9.50 USD

Sale Sold out

Shipping calculated at checkout.

Fiber Patch Cable, LC UPC to LC UPC, Duplex, 2F, OS2, Riser (OFNR), 2.0mm

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.

Specifications

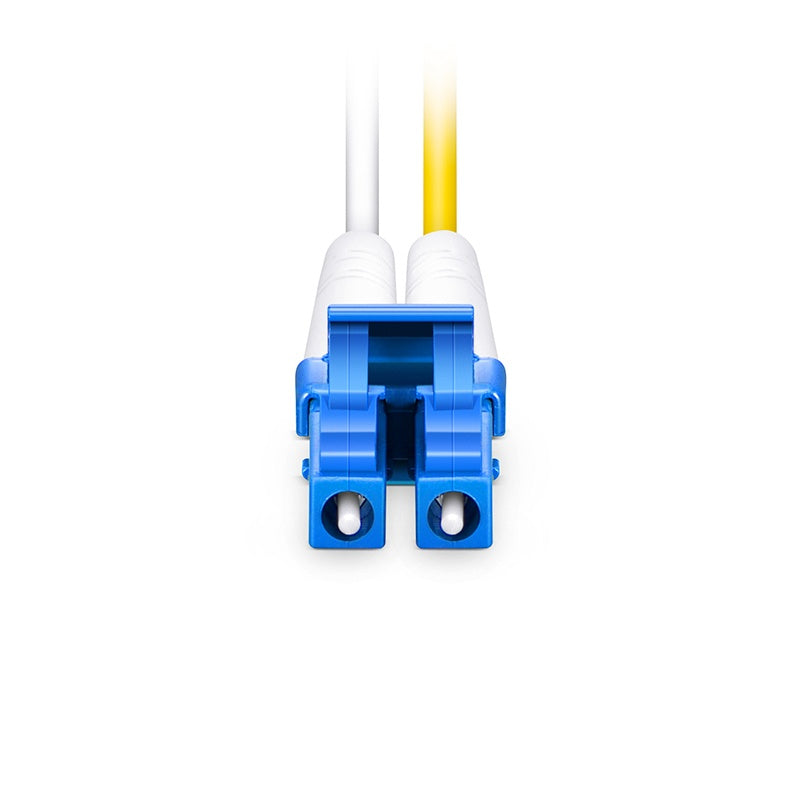

Connector A - LC UPC Duplex

Connector B - LC UPC Duplex

Fiber Count - 2 Fibers

Fiber Grade - G.657.A1 (Compatible with G.652.D)

Fiber Mode - OS2 9/125μm

Wavelength - 1310/1550nm

Polarity - A (Tx) to B (Rx)

Cable Type - Tight-Buffered

Cable Outside Diameter (OD) - 2.0mm

Flame Rating - Riser (OFNR)

Min. Bend Radius (Optical Fiber) - 10mm

Min. Bend Radius (Fiber Cable) - 10/5D (Dynamic/Static)

Connector Durability - 1000 times

Tensile Strength (Long/Short Term) - 90/150N

Insertion Loss - ≤0.3dB

Return Loss - ≥50dB

Attenuation at 1310 nm - 0.36dB/km

Attenuation at 1550 nm - 0.22dB/km

Operating Temperature - -20 to 70°C (-4 to 158℉)

Storage Temperature - -40 to 80°C (-40 to 176℉)

Connectivity Solutions

Leaf-spine Connections

10G Trunk Cabling

40G Interconnect

800G Interconnect

400G to 4x100G

Features

Build a Stable and Robust Fiber Optic Network

High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.

Structural Diagram

Cross-section Diagram

Carrier-grade Cable Ensures Transmission Quality

Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.

The G.657.A1 fiber allows tighter cable bends for routing, and ensures low optical loss and stable transmission.

The high-precision zirconia ceramic ferrule has a long life, and ensures strong stability and interchangeability.

Color-Coded Cable Jacket for Easy Identification

A fiber cable's jacket color is typically defined by the fiber type, and can differ based on mode and performance level.

A-to-B Fiber Polarity Commonly Used in Fiber Applications

To help the industry select and install the right components to maintain proper polarity, TIA-568-C standards recommend the A-B polarity scenario for duplex patch cords.
