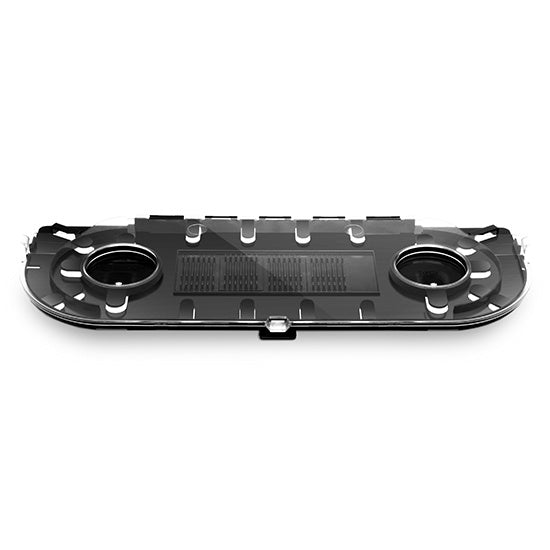

The fiber optical splice tray for FHD® (FS High Density) series rack mount enclosure shall house and protect fiber optic splices, guarantee proper fiber cable management and bend radius control, and allow for clear labeling and logical organization of the fiber optic splices. The fiber optical splice tray can hold and protect up to 24 fusion splices within FHD® series rack mount fiber enclosures. It is ideal for splicing OS1, OS2, OM1, OM2 and OM3/OM4 fiber to factory-terminated pigtails and is suitable for applications where fusion splicing yields installation time and labor cost benefits.
FHD® High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
FHD® FIBER OPTICAL SPLICE TRAY 24 FUSION FOR RACK MOUNT FIBER ENCLOSURE
FHD® FIBER OPTICAL SPLICE TRAY 24 FUSION FOR RACK MOUNT FIBER ENCLOSURE
Regular price
$45.50 USD
Regular price
Sale price
$45.50 USD
Unit price
per
Shipping calculated at checkout.
Fiber Optical Splice Tray 24 Fusion for FHD® Rack Mount Fiber Enclosure
Specifications
Product Type - Fiber Optical Splice Tray
Splicing Capacity - 24 Fusion
Color - Black
Material - ABS, UL 94V-0
Available Cable Diameters - 250µm Loose-tube Fiber and 900µm Tight-buffered Fiber
Dimensions (HxWxD) - 0.37"x14.01"x5.62" (9.40x355.86x142.80mm)
Operating Temperature - -40 to 55°C (-40 to 131℉)
Application - Matching for FHD® Rack Mount Enclosures
* FHD is a registered trademark of FS.COM Ltd.
Features
An Upgrade Component for FHD® Series Rack Mount Enclosures
The trays stack 4 high, up to 96 fibers in 1U FHD® (FS High Density) series enclosures, maximizes fiber density for fusion splicing applications.
Key Features for Greater System Flexibility and Versatility
The fiber splice tray provides a flexible system for managing fiber optic splices and greater network reliability.

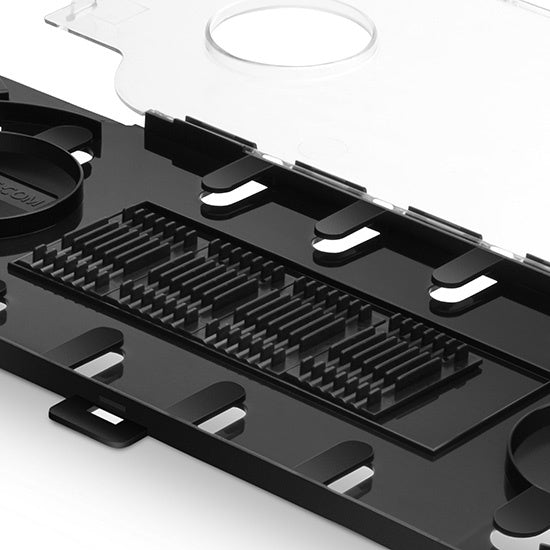

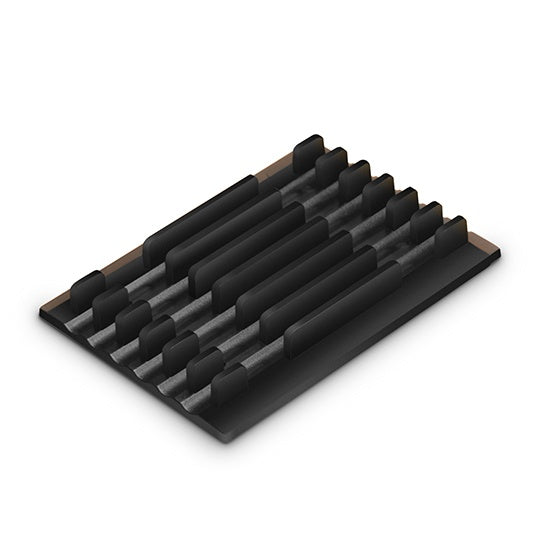

Pivoting splice holders allow uninterrupted control of fiber prior to splicing and during rework.
Self-contained slacking and spooling provide buffered fiber routing and storage within protected pathways.
Self-stacking tray with interlocking hinges eliminates the need for external splice tray holders.

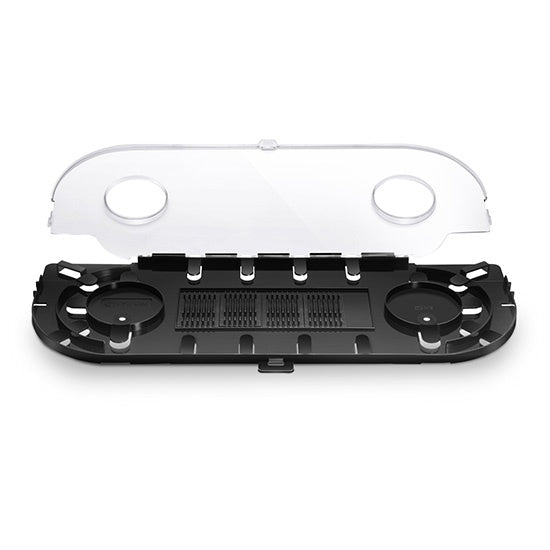

Clear hinged cover enables inspection and access to splices for easier moves, adds, and changes.
Ideal for Splicing Fiber to Factory-terminated Pigtails
Support routing 900µm buffered fiber and use enough cable length, approximately 1.2m to ensure one complete loop of individual fibers around the slack spools.
