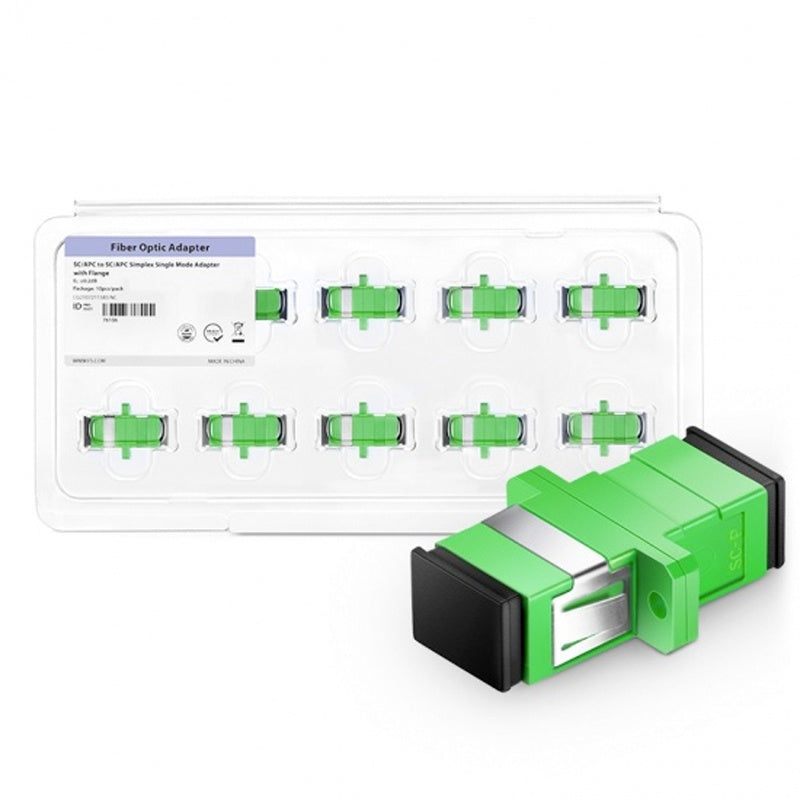

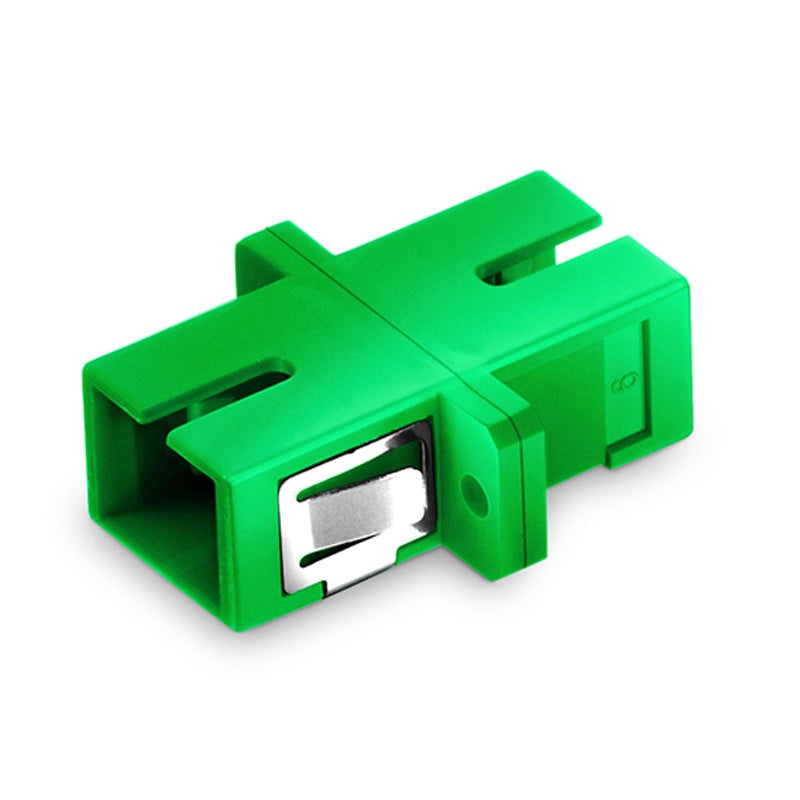

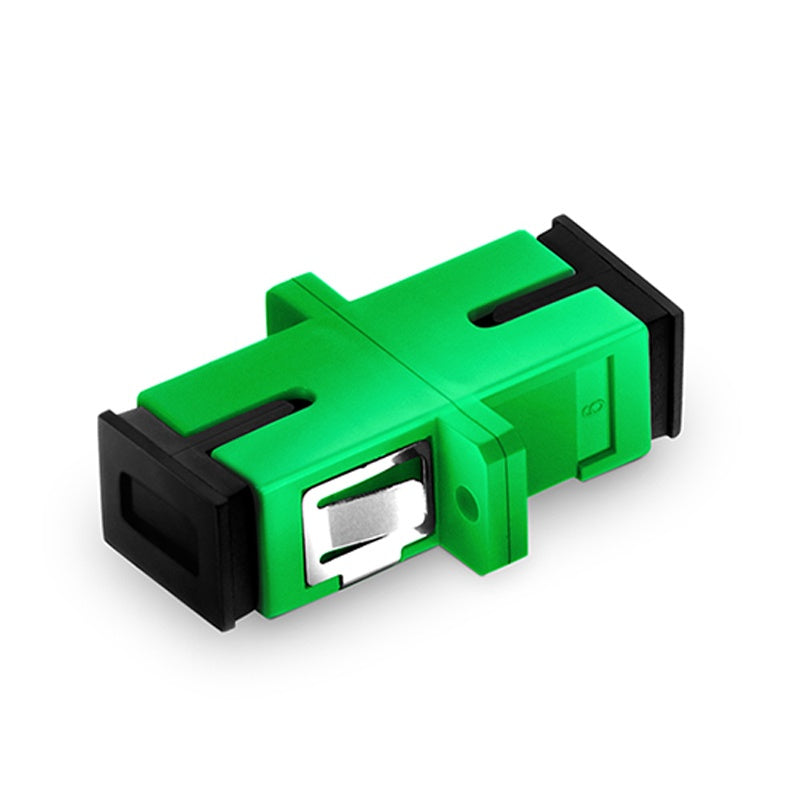

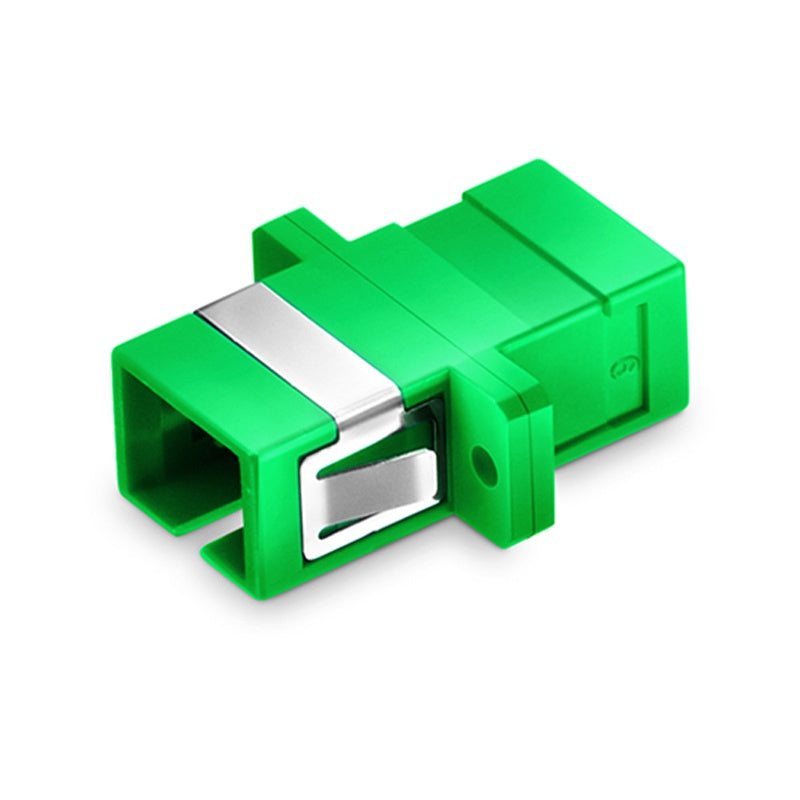

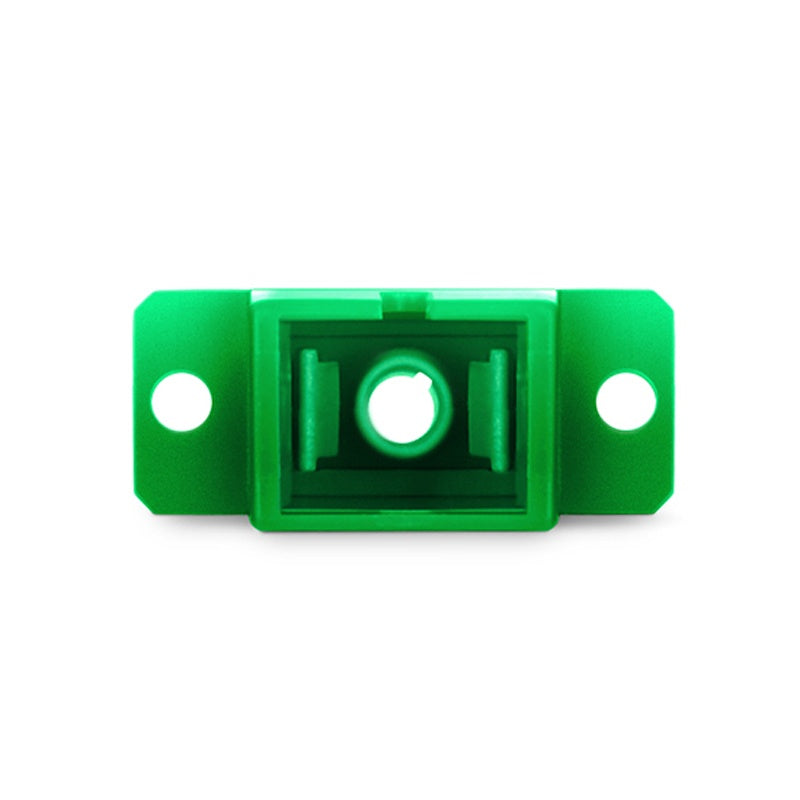

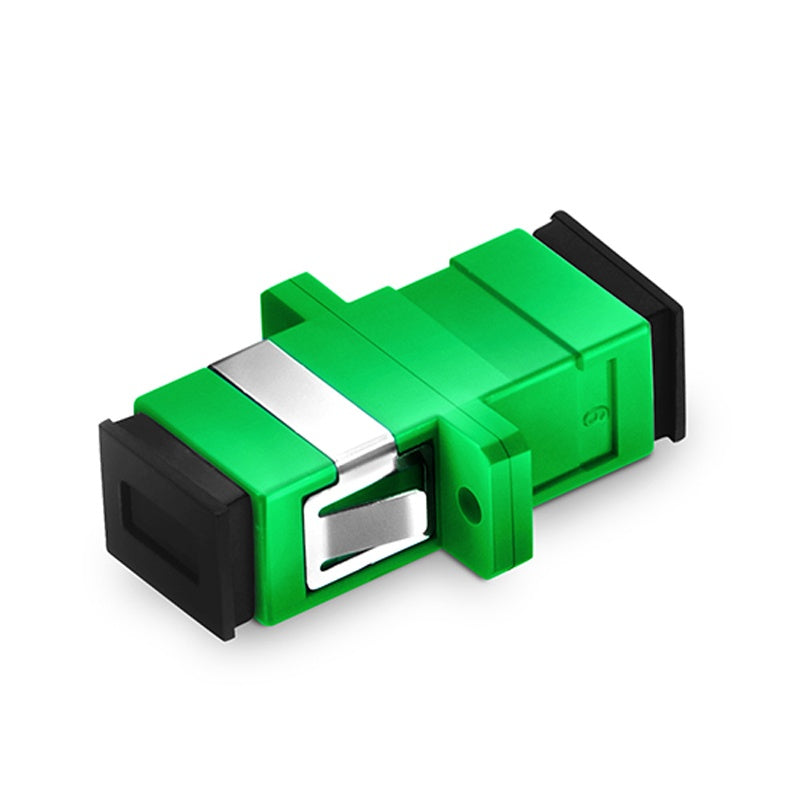

SC/APC to SC/APC Simplex OS2 Single Mode Fiber Optic Adapter/Coupler with Flange (10pcs/Pack)

SC/APC to SC/APC Simplex OS2 Single Mode Fiber Optic Adapter/Coupler with Flange (10pcs/Pack)

Regular price $5.55 USD
Regular price Sale price $5.55 USD
Sale Sold out
Shipping calculated at checkout.

SC/APC to SC/APC Singlemode Simplex Fiber Adapter, 0.2dB Insertion Loss

A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. FS supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.

Specifications
Connector Type - SC-SC
Body Style - Simplex
Polish Type - APC
Fiber Mode - OS2 9/125μm
Insertion Loss - ≤0.2dB
Durability - 1000 times
Mounting Type - Full flanged
Alignment Sleeve Material - Ceramic
Color - Green
Flammability Rate - UL 94V-0
Package Quantity - 10 Pcs
RoHS Compliancy Status - Compliant
Operating Temperature - -40 to 85℃(-40 to 185℉)
Storage Temperature - -10 to 60℃(14 to 140℉)

Extending Fiber Connection with Adapters

With high-precision components and tool-less design, the adapters allow two devices to communicate from a distance through a direct connection with the fiber optic line.

Protective Design Dust Cap

Prevent the adapter from dust and keep it clean

Stainless Steel Clip

Allow for easy snap-in installation without tools

Zirconia Ceramic Sleeve

Low insertion loss with high-precision alignment
