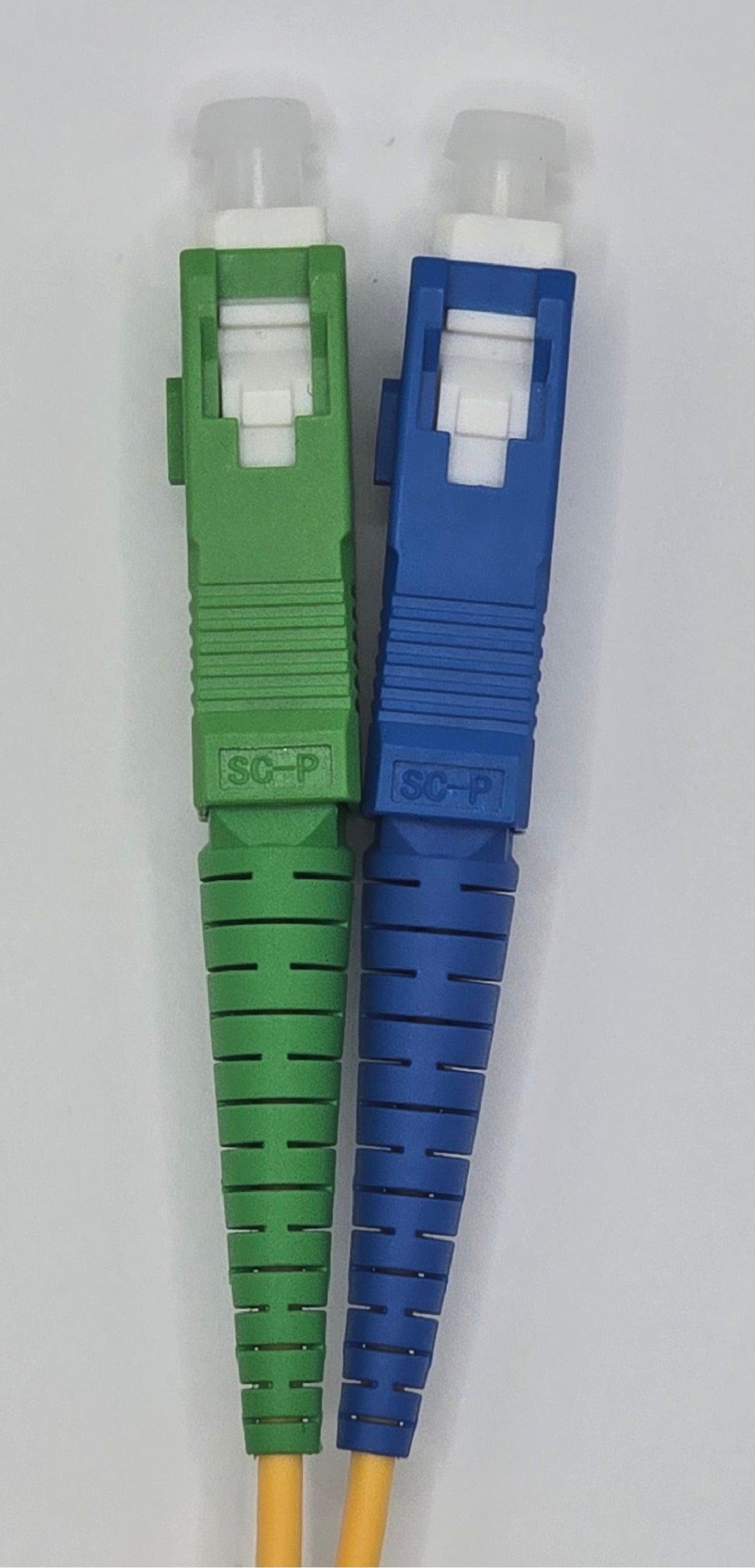

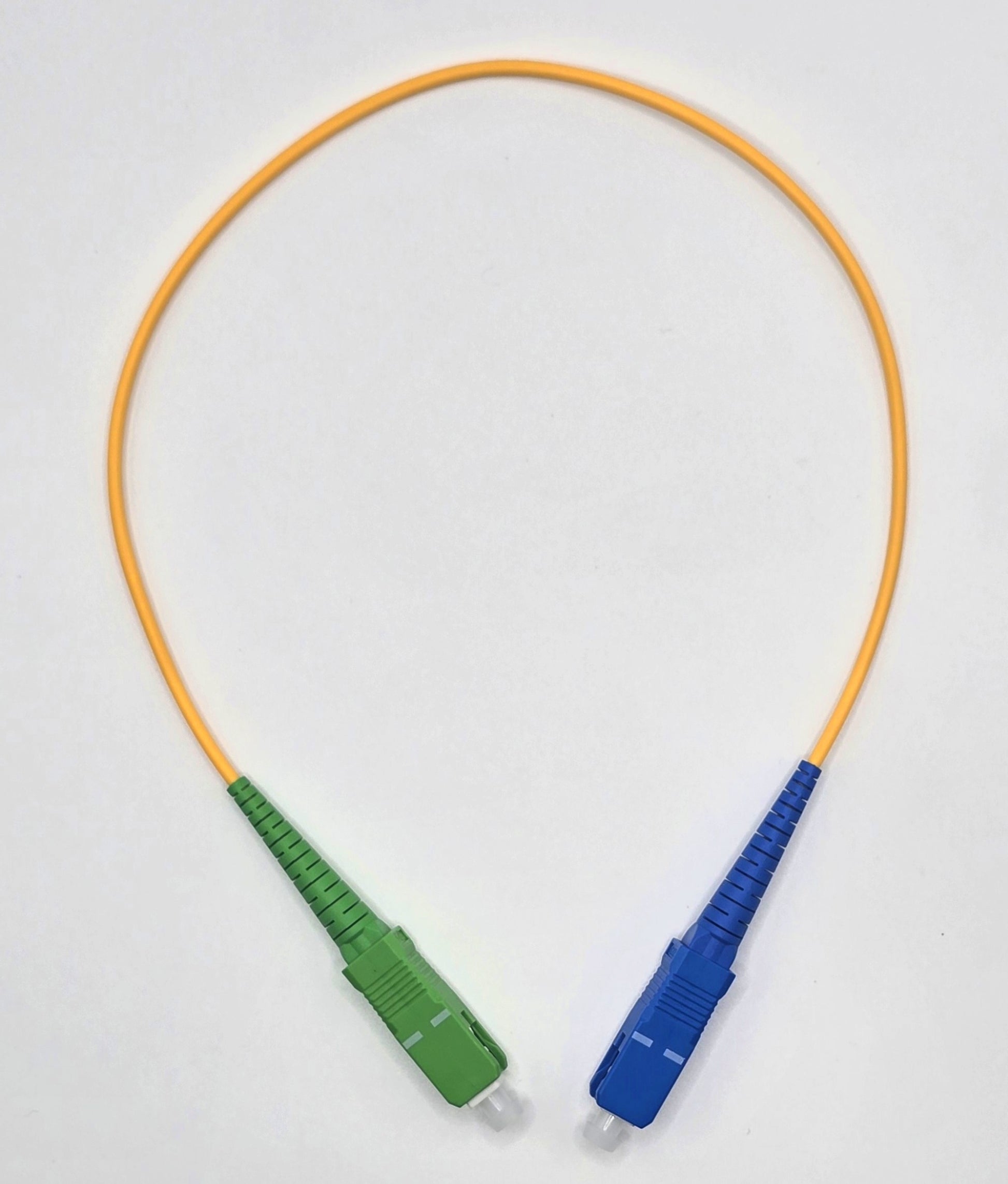

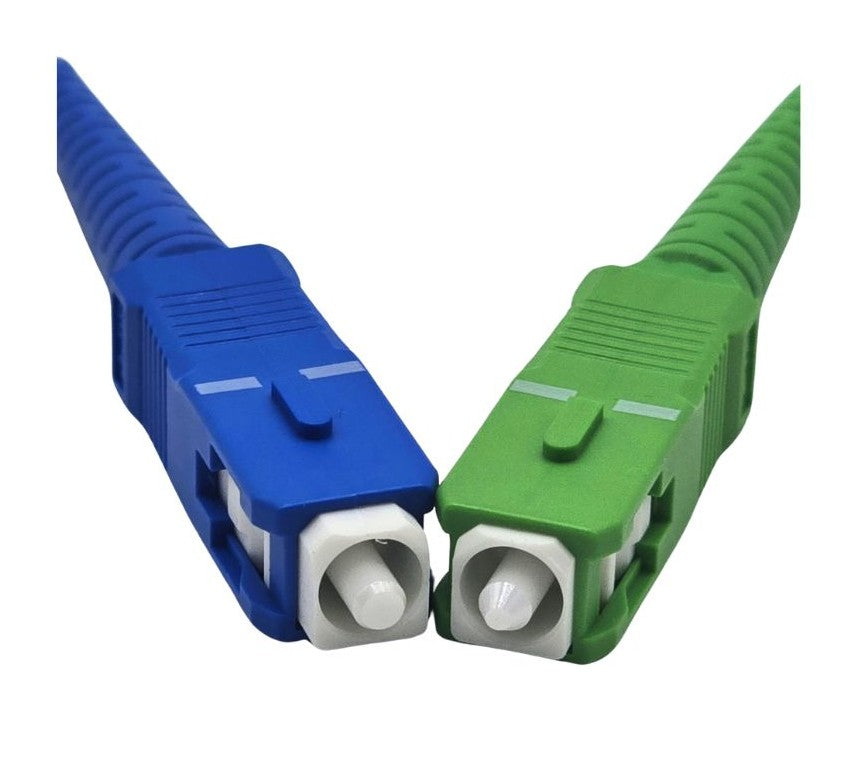

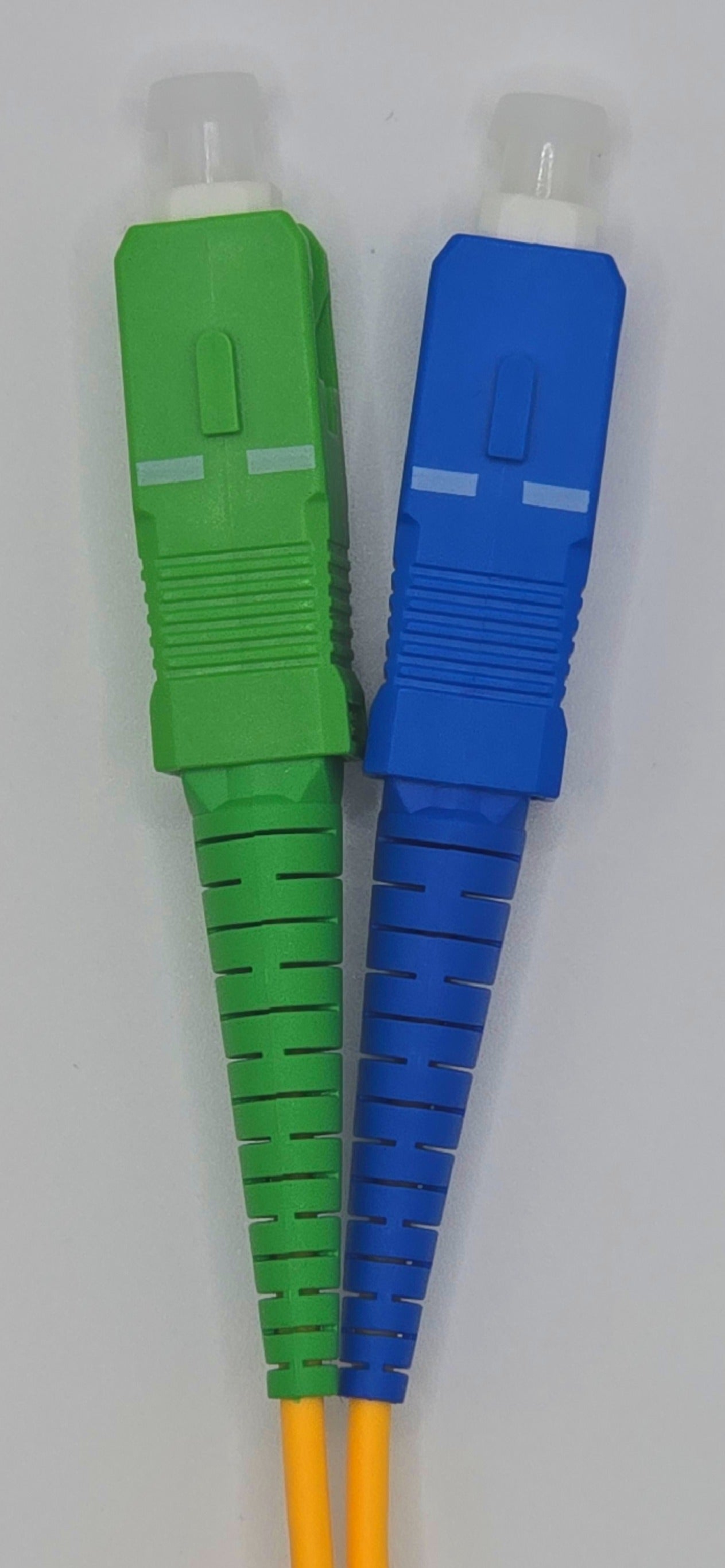

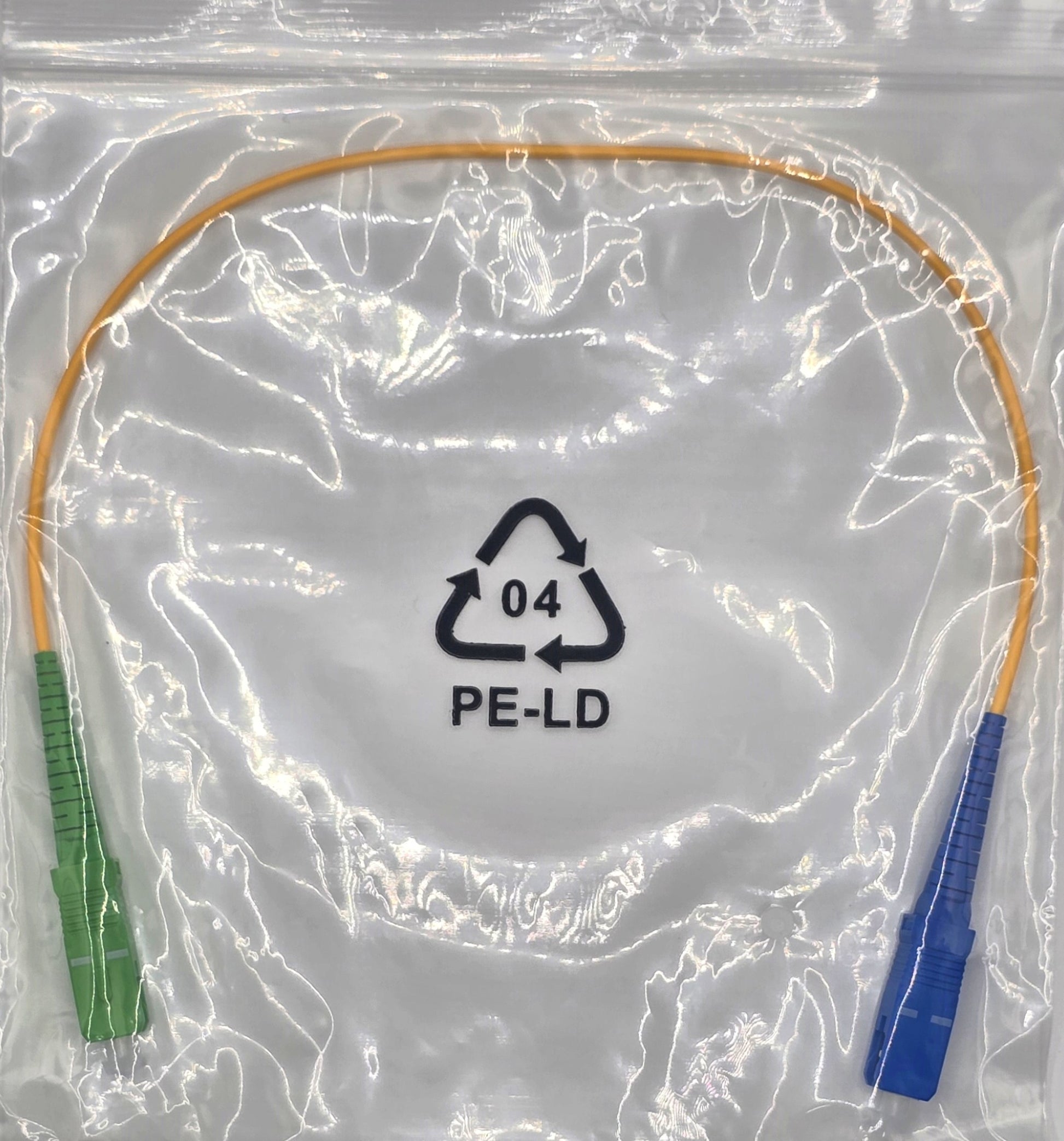

Fiber Patch Cable .5M (1FT) , 1 Fiber, SC/UPC Simplex TO SC/APC Simplex, OS2 Single Mode, Riser(OFNR), 0.9MM, Yellow

Fiber Patch Cable .5M (1FT) , 1 Fiber, SC/UPC Simplex TO SC/APC Simplex, OS2 Single Mode, Riser(OFNR), 0.9MM, Yellow

Regular price $5.98 USD
Regular price $6.50 USD Sale price $5.98 USD
Sale Sold out
Shipping calculated at checkout.

Fiber Patch Cable, SC UPC to SC APC, Simplex, 1F, OS2, Riser (OFNR), 2.0mm

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.

Specifications

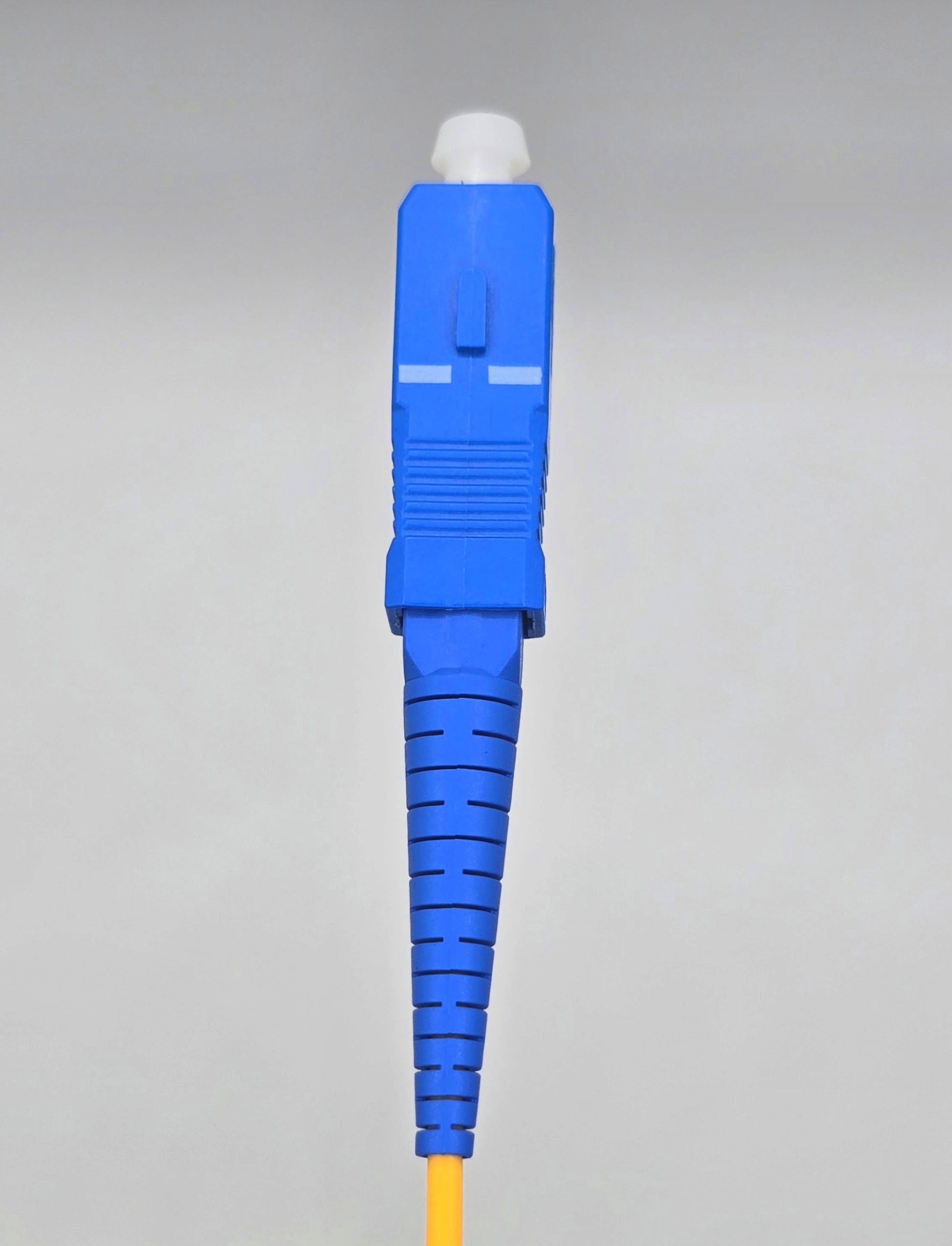

Connector A - SC UPC Simplex

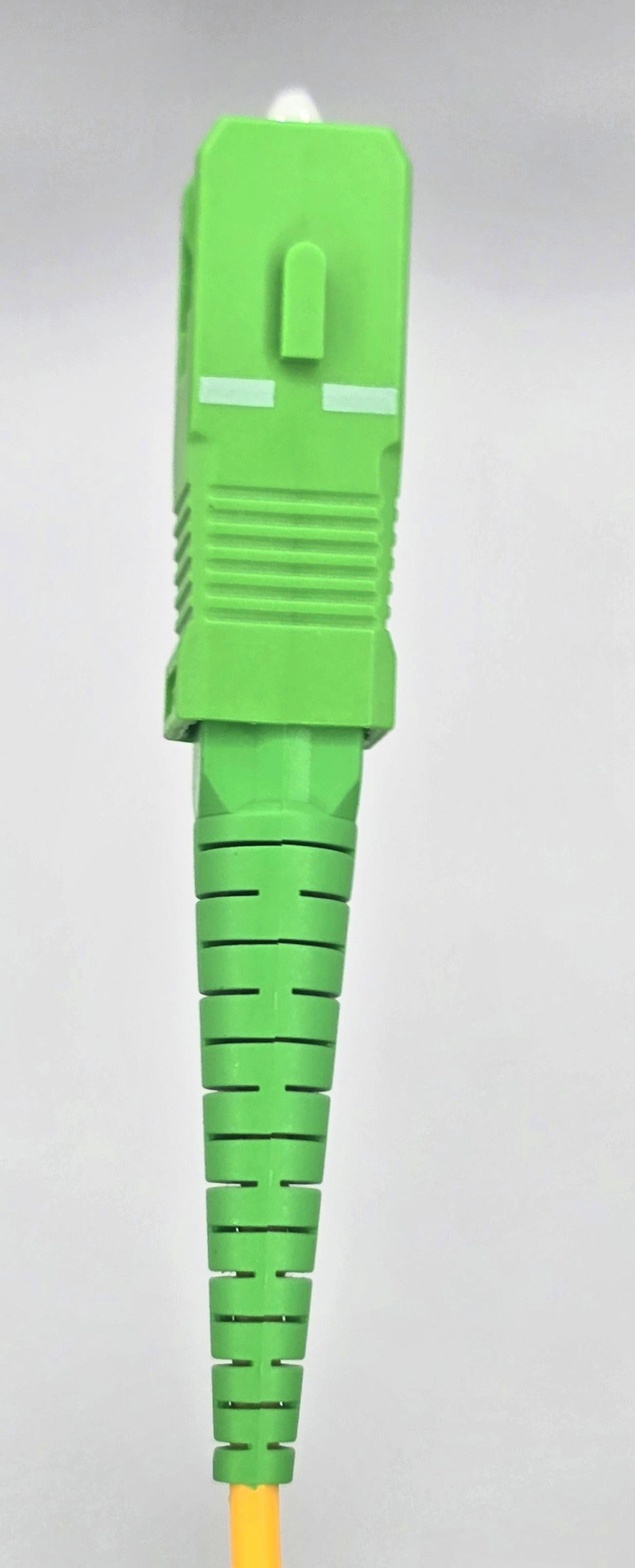

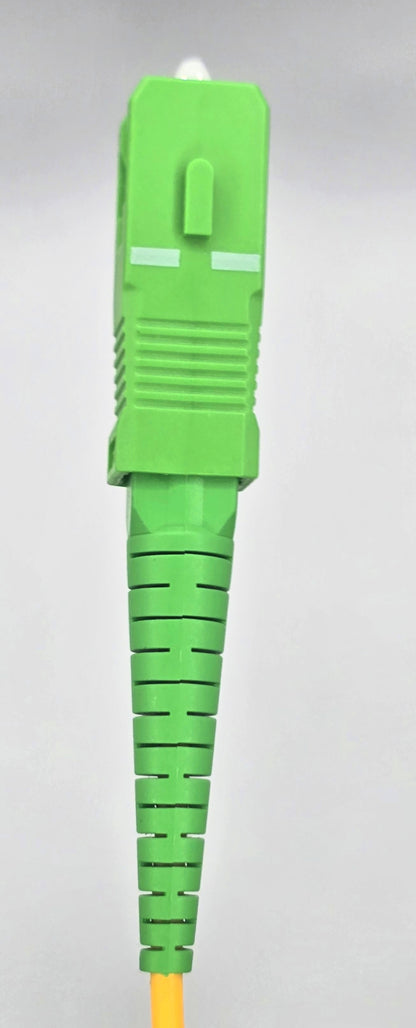

Connector B - SC APC Simplex
Fiber Count - 1 Fiber
Fiber Grade - G.657.A1 (Compatible with G.652.D)
Fiber Mode - OS2 9/125μm
Wavelength - 1310/1550nm
RoHS Compliancy Status - Compliant
Cable Type - Tight-Buffered
Cable Outside Diameter (OD) - 2.0mm
Flame Rating - Riser (OFNR)
Min. Bend Radius (Optical Fiber) - 10mm
Min. Bend Radius (Fiber Cable) - 10/5D (Dynamic/Static)
Connector Durability - 1000 times
Tensile Strength (Long/Short Term) - 60/100N
Insertion Loss - ≤0.3dB
Return Loss - UPC≥50dB, APC≥60dB
Attenuation at 1310 nm - 0.36dB/km
Attenuation at 1550 nm - 0.22dB/km
Operating Temperature - -20 to 70°C (-4 to 158℉)
Storage Temperature - -40 to 80°C (-40 to 176℉)

Features

Build a Stable and Robust Fiber Optic Network
High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.
Structural diagram
Cross-section diagram

Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.
The G.657.A1 fiber allows tighter cable bends for routing, and ensures low optical loss and stable transmission.
The high-precision zirconia ceramic ferrule has a long life, and ensures strong stability and interchangeability.

Provide Interconnect and Cross-connect of Application
Designed for high-density applications in entrance facilities, telecommunications rooms, data centers, at the desk, and network applications.
Meet the Various Indoor Installation Needs

Ideal for network cabinet connection, ceiling wiring and under-floor wiring in the data center.
