The 10G SFP+ Passive Direct Attach Copper Twinax Cable offers a cost-effective connectivity for establishing a 10-Gigabit short-distance connectivity within a rack or between adjacent racks in data centers.
The Passive Direct Attach Cable is an ideal 10GBASE Ethernet network solution that require reliability, low latency, and practically no power consumption. DAC cables are lower cost, more durable than optical fibers. This cable provides low insertion loss and ultra-low crosstalk. And it complies with IEEE 802.3, SFF-8431, and hot-pluggable QSFP28 MSA standards, ensuring reliability of your network with full system testing in targeted Switches.
Note: FS Box does not currently support changing H3C and HPE compatibility for DAC cables.
Note: The FS P/N is changed from SFPP-PC02 to SFP-10G-PC02, but the product is the same. Only the FS P/N has been changed.

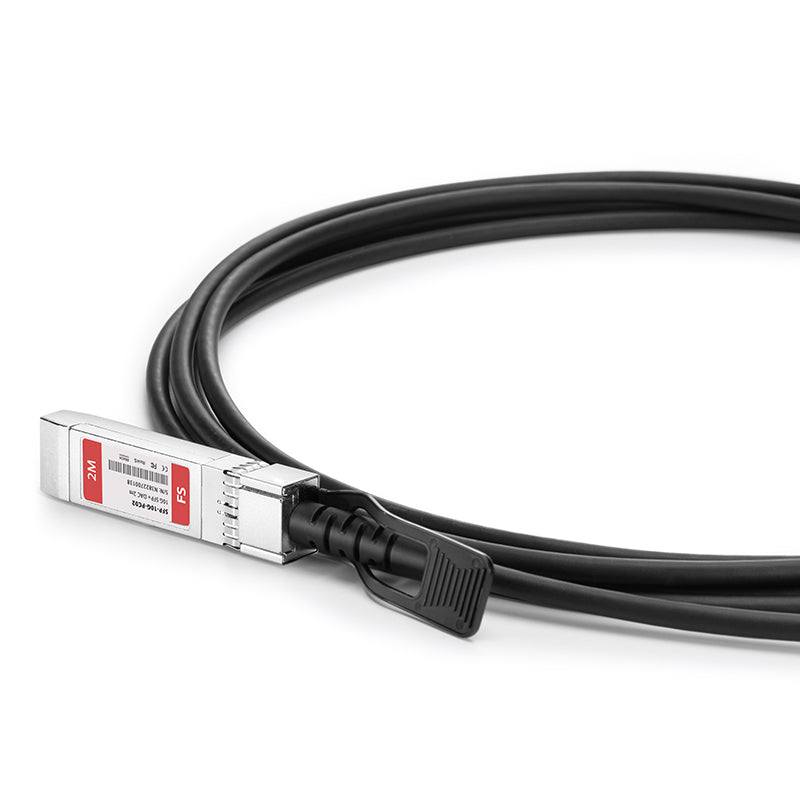

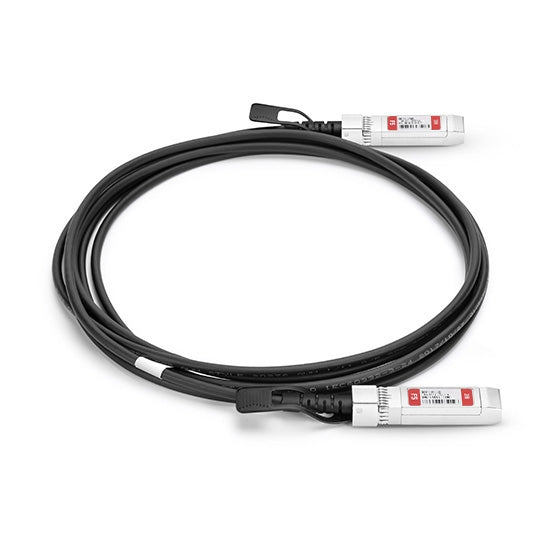

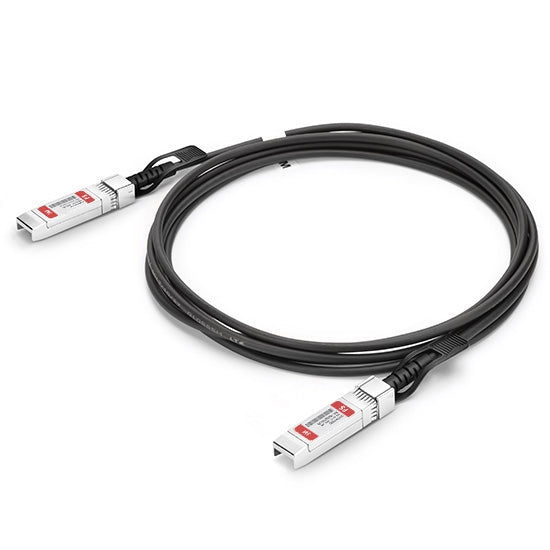

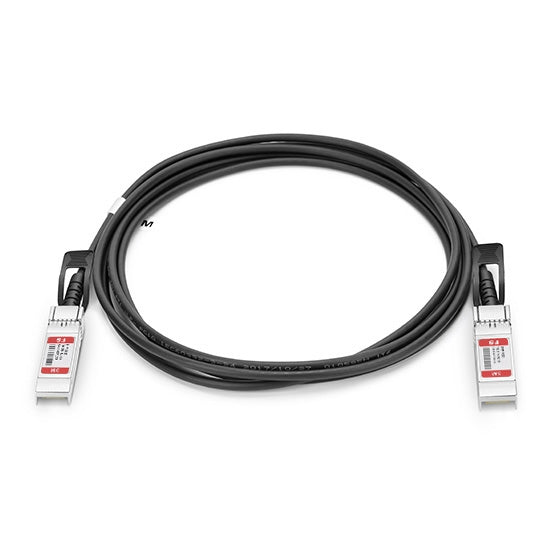

CISCO 2M (7FT) SFP-H10GB-CU2M Compatible 10G SFP+ Passive Dire Attached Copper TWINAX Cable
CISCO 2M (7FT) SFP-H10GB-CU2M Compatible 10G SFP+ Passive Dire Attached Copper TWINAX Cable
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Unit price
per
Shipping calculated at checkout.
Cisco SFP-H10GB-CU2M Compatible 10G SFP+ DAC Twinax Cable (2-meter, Passive, SFP+ to SFP+, 30AWG)
Specifications
Cisco Compatible - SFP-H10GB-CU2M
Connector Type - SFP+ to SFP+
Max Data Rate - 10Gbps
Media - Copper
Power Supply - 3.3V
Minimum Bend Radius - 23mm
Wire AWG - 30AWG
Cable Length - 2m (6.56ft)
Jacket Material - PVC (OFNR)
Cable Type - Passive Twinax
Temperature - 0 to 70°C (32 to 158°F)
Power Consumption - ≤0.1W
Application - 10G Ethernet
Protocols - 1x InfiniBand QDR, DDR, SDR, 10 Gigabit Ethernet, Fiber Channel
Warranty - 5 Years
Quality Testing Program
Features
Low Power Consumption for Energy-saving
Direct attach copper is suitable for very short links and offer a cost-effective way to establish a 10-Gigabit link between SFP+ 10G ports within racks and across adjacent racks.
<0.1W
Lower Power Consumption
Copper Cable
to Save OPEX
23mm Minimum
Bend Radius for Easy Cabling
Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.
Enable Seamless Connectivity for Your Network
FS offers the ability to configure the pre-set compatibility of either connector of the DAC cable online with FS BOX to connect Cisco to Arista, Dell to Juniper, and any other mixes of configurations.
Low Cost for Ultra-Short Connections
The DAC cables use twinax copper to transmit data, equivalent to one optical fiber and two optical modules, significantly reducing the cost of connecting fibers.
Superior Reliability and Durability for Use
DAC cables designed with high-shielding PVC jackets had been less susceptible to dust and environmental disturbances, enhancing stability and lifetime.
Easy Plug-and-Play
DAC cables complie with the standard SFP+ MSA and offer hot-pluggable functionality with no electronics or optical Connectors for enhanced uptime and improved serviceability.
|
Connector Type
|
SFP+ to SFP+
|
SFP+ to SFP+
|
|
Max Data Rate
|
10Gbps
|
10Gbps
|
|
Minimum Bend Radius
|
30mm
|
23mm
|
|
Wire AWG
|
26AWG
|
30AWG
|
|
Jacket Material
|
PVC (OFNR)
|
PVC (OFNR)
|
|
Cable Type
|
Active Twinax
|
Passive Twinax
|
|
Temperature
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
|
Power Consumption
|
≤0.55W
|
≤0.1W
|
|
Power Supply
|
3.3V
|
3.3V
|
|
Protocols
|
1x InfiniBand QDR, DDR, SDR, 10 Gigabit Ethernet, Fibre Channel
|
1x InfiniBand QDR, DDR, SDR, 10 Gigabit Ethernet, Fibre Channel
|
|
Application
|
10G Ethernet
|
10G Ethernet
|
