Cat6 RJ45 modular plugs are used on stranded conductor cat6 cables. These modular plugs are manufactured from high-impact clear polycarbonate to withstand everyday wear and tear, and the contacts are 50 micron gold for optimum signal transmission. In addition, two-piece design with loading bar makes it easier to install.
CAT6 RJ45 Standard Modular Plugs (TWO-PIECE SUIT), Unshielded Network Connector or 23-24AWG Twisted Pair Solid Or Stranded Cable (100/PACK)
CAT6 RJ45 Standard Modular Plugs (TWO-PIECE SUIT), Unshielded Network Connector or 23-24AWG Twisted Pair Solid Or Stranded Cable (100/PACK)
Connector RJ45
Regular price
$21.00 USD
Regular price
Sale price
$21.00 USD
SKU CON-RJ45-CAT6-001
US shipping · 1–2 business days processing (Mon–Fri). Weekends may vary. · 30-day unused returns ·Shipping policy · Refund policy
Shipping calculated at checkout.
Cat6 RJ45 Unshielded Modular Plug with Loading Bar and 50 Micron Gold Plated Contacts
Specifications
Product Type - Modular Plug
Connector - RJ45 Male
Cable Type - Cat6 Unshielded
Data Rate Support - 1000Base-T
Compatibility - Solid or Stranded Cables
Package - 100pcs/pack
Wire Gauge Supported - 23~24AWG
Wiring Scheme - T568A & T568B
Loading Bar - Yes
Material - Polycarbonate
Operating Temperature - -40°C to 85°C
Approvals - RoHS Compliant
Connectivity Solutions
Features
Support 1000Base-T Ethernet & Guarantee the Stability of the Transmission
This Cat6 RJ45 unshielded modular plug is designed with 3-Prong & 50μ" gold plated contacts, with stronger antioxidant performance, which can support 1000Base-T Ethernet.
50μ" Gold Plated Contacts
Superior and reliable data transmission
Robust Shrapnel
The polycarbonate materials make it more durable
3-Prong Contacts Pins
Straddle conductors properly
Independent Line Groove for Easy Pre-wiring

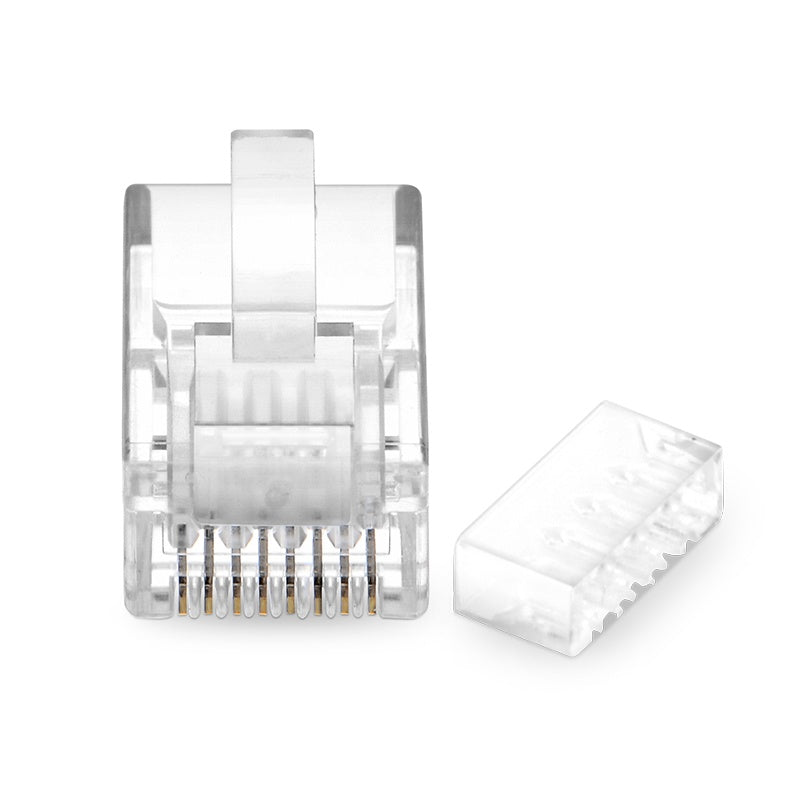

Built-in transparent load bar makes it easy to see the wire sequence and ensure accurate wiring.
Universal Compatibility
RJ45 modular plug is designed for devices with ethernet RJ45 port, such as CCTV, Routers, Switches, Printers, Hubs, PC, and Servers.
Operating Instructions
Cut the cable to a suitable length and put it into the stripping hole
Peel off the cable skin
Cut the crossed plastic sheets
Arrange the wires based on T568A/B
Put on the load bar
Flush cut the wires
Put the load bar assembly into the plug
Crimping plug
Finish
