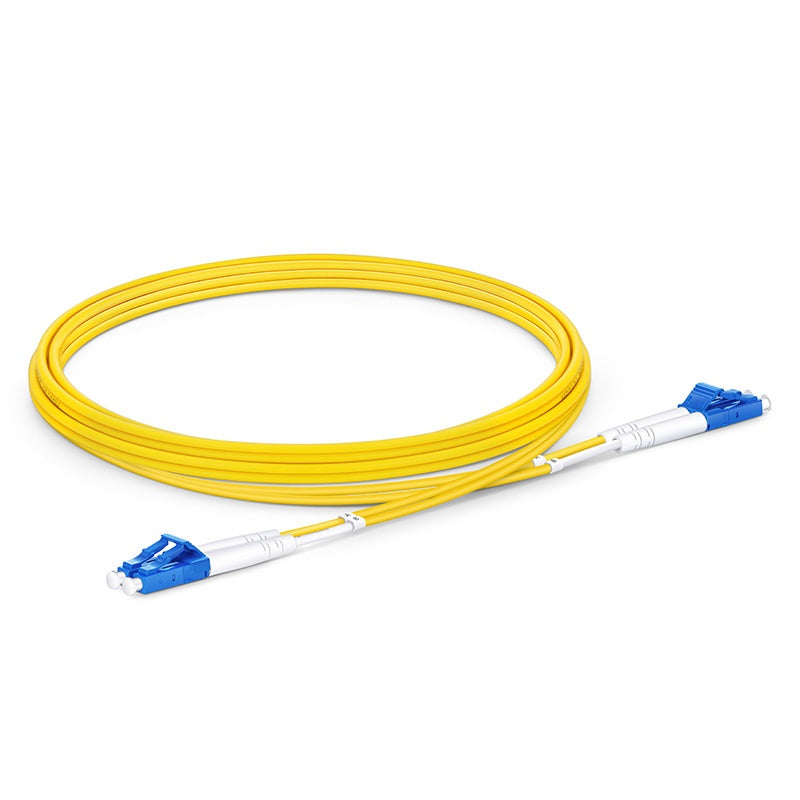

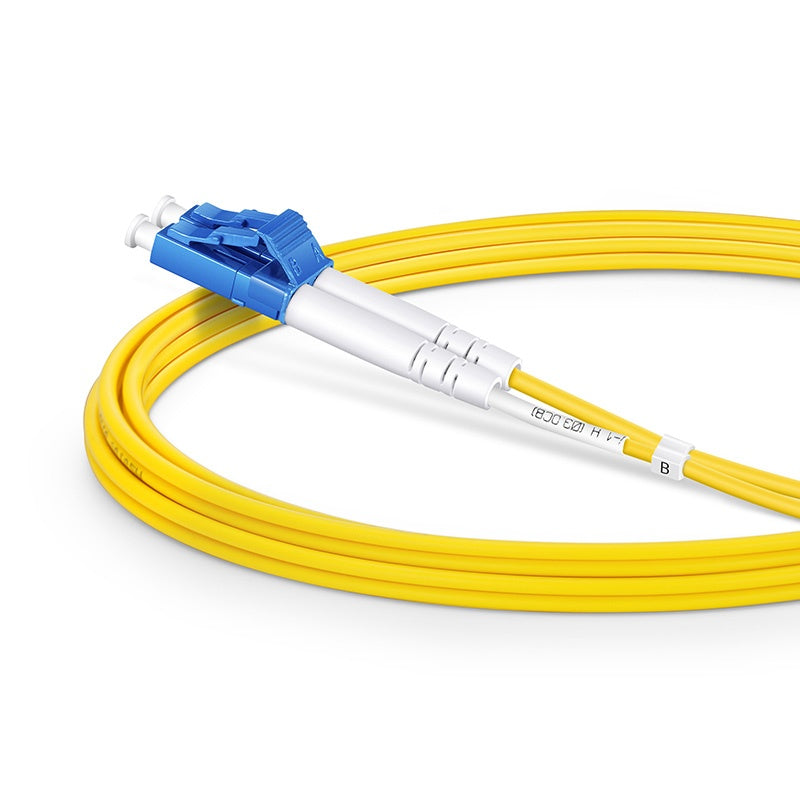

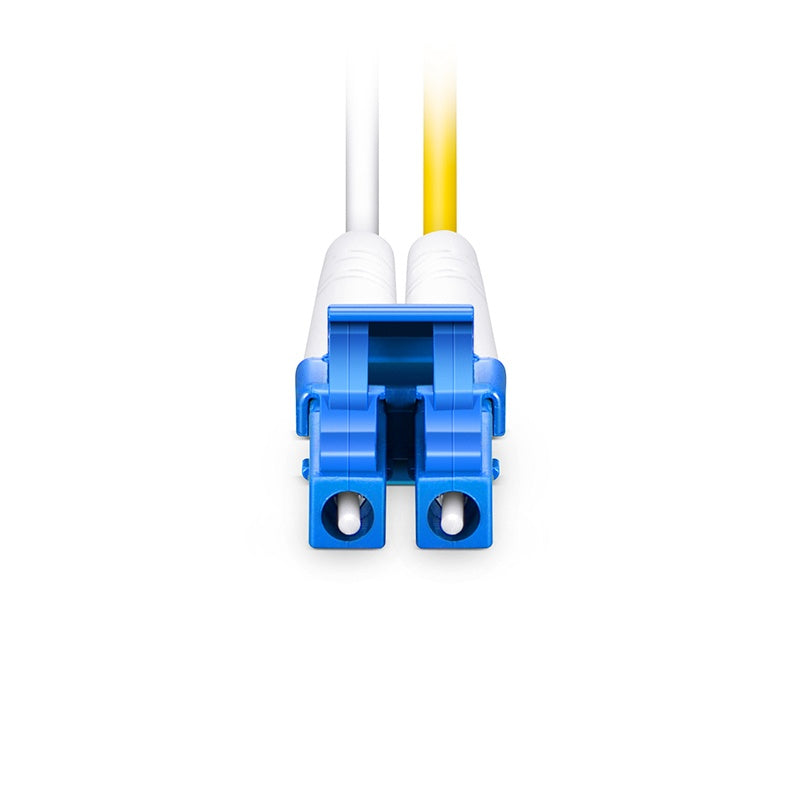

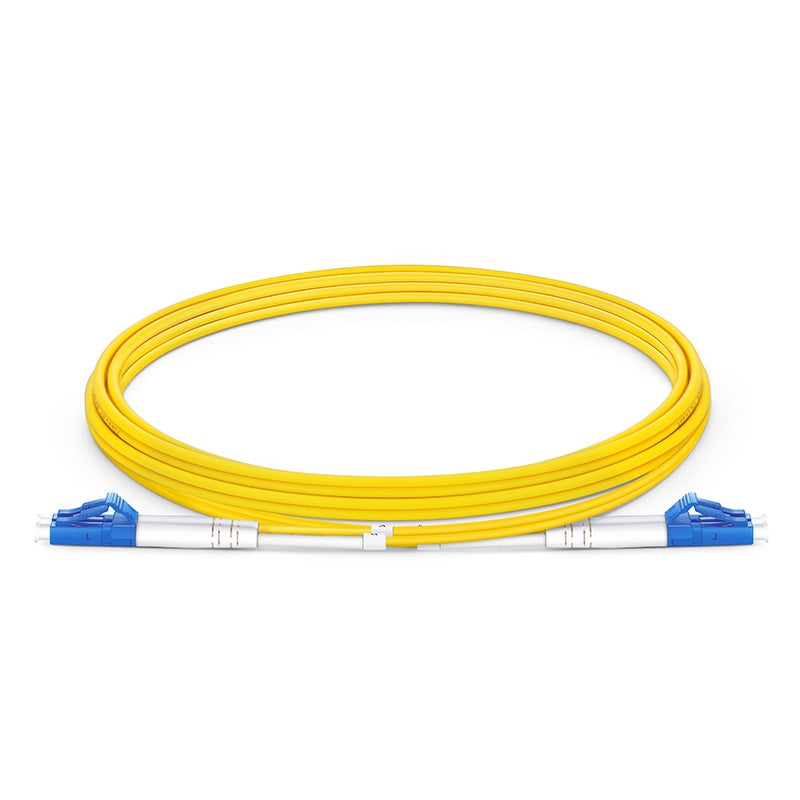

Fiber Patch Cable 2M(7FT),2 Fibers, LC/UPC to LC/UPC Duplex, Singlemode (OS2), Riser (OFNR), 2.0MM, Tight-Buffered, YELLOW

Fiber Patch Cable 2M(7FT),2 Fibers, LC/UPC to LC/UPC Duplex, Singlemode (OS2), Riser (OFNR), 2.0MM, Tight-Buffered, YELLOW

Connector LC/UPCFiber OS2, G.657.A1Length (m) 2.0Length (ft) 7.0Indoor/Outdoor indoor
Regular price $5.90 USD
Regular price Sale price $5.90 USD

SKU JMP-LCUPCLCUPC2F-2M-023

US shipping · 1–2 business days processing (Mon–Fri). Weekends may vary. · 30-day unused returns ·Shipping policy · Refund policy

Shipping calculated at checkout.

Fiber Patch Cable, LC UPC to LC UPC, Duplex, 2F, OS2, Riser (OFNR), 2.0mm 7Ft.

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.

Specifications
Connector A LC UPC Duplex
Connector B LC UPC Duplex
Fiber Count 2 Fibers
Fiber Grade G.657.A1 (Compatible with G.652.D)
Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm
Polarity A (Tx) to B (Rx)
Cable Type Tight-Buffered
Cable Outside Diameter (OD) 2.0mm
Flame Rating Riser (OFNR)
Min. Bend Radius (Optical Fiber) 10mm
Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static)
Connector Durability 1000 times
Tensile Strength (Long/Short Term) 90/150N
Insertion Loss ≤0.3dB
Return Loss ≥50dB
Attenuation at 1310nm 0.4dB/km
Attenuation at 1550nm 0.3dB/km
Operating Temperature -10 to 70°C (14 to 158℉)
Storage Temperature -20 to 70°C (-4 to 158℉)

Spine-Leaf Architecture Achieve Larger Network Scale
Reduce latency times of east-west traffic and provide a redundant path.
