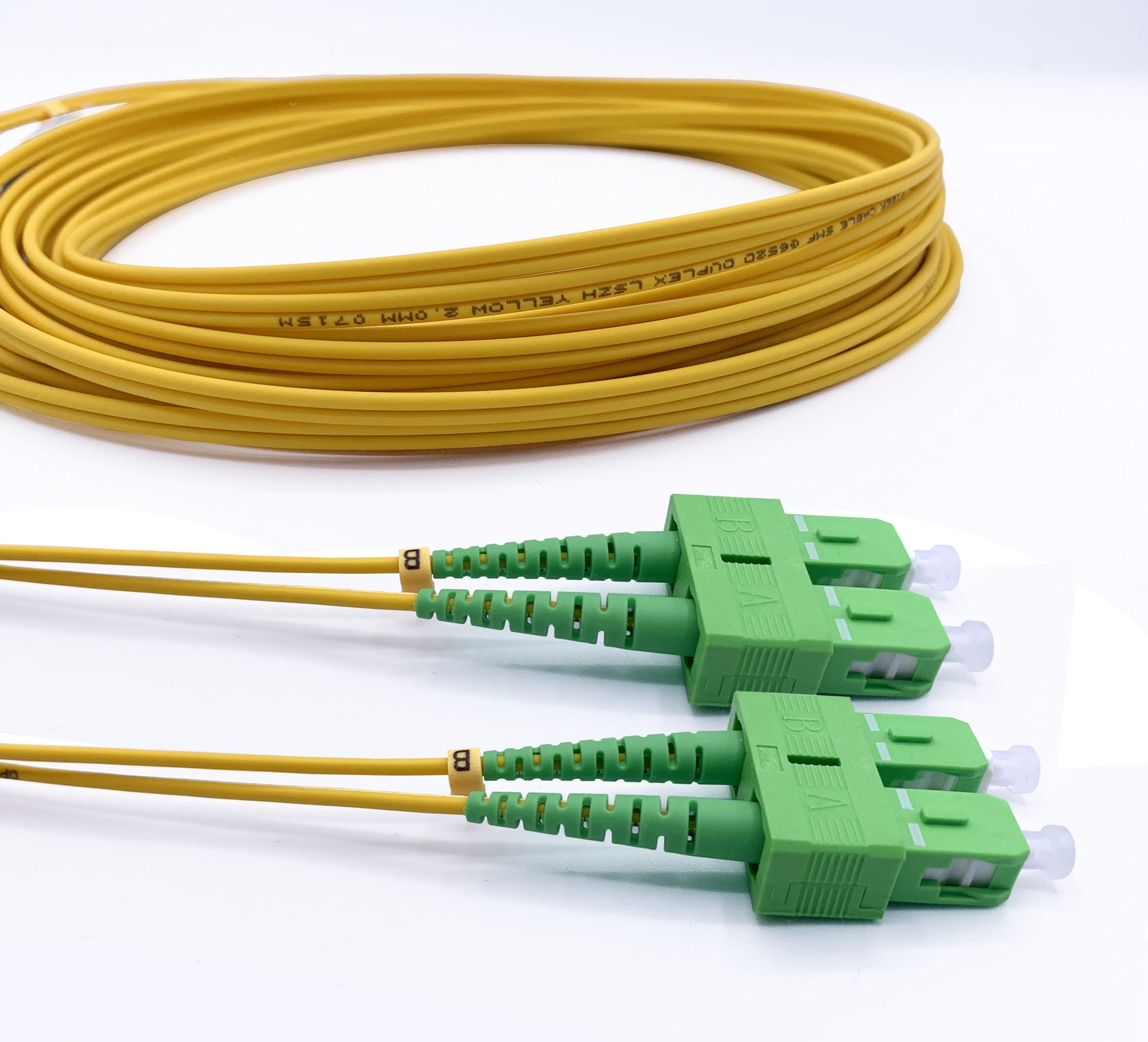

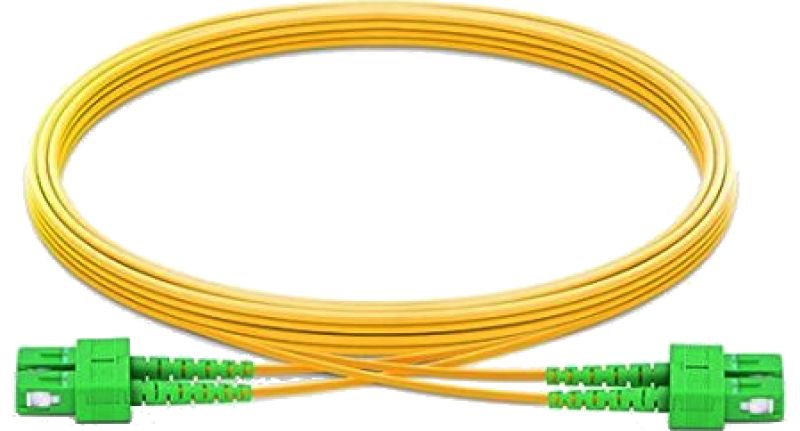

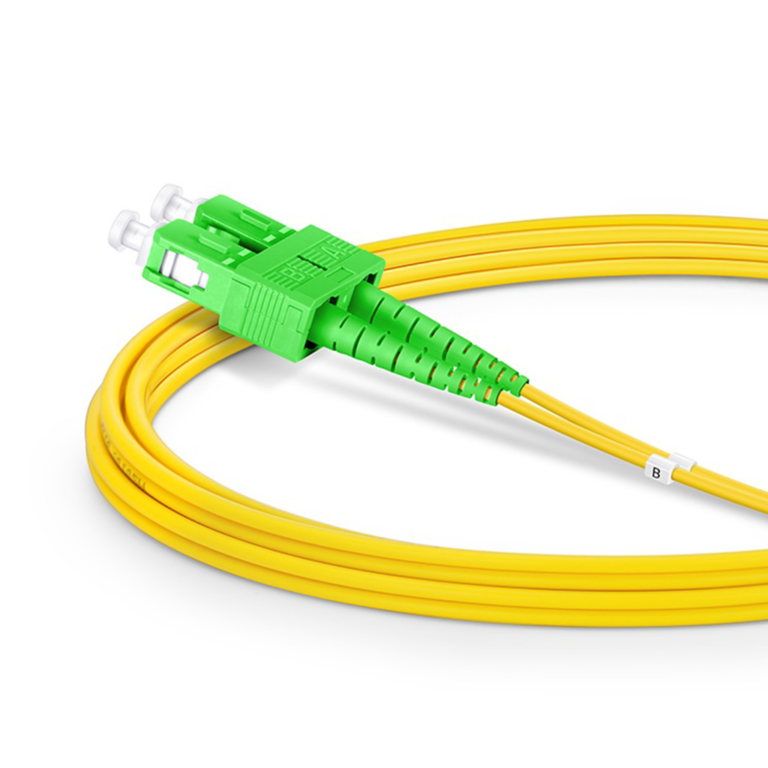

Fiber Patch Cable 30M(98FT),2 Fibers, SC/APC DUPLEX, OS2 Single Mode, Riser(OFNR), 0.9MM, Yellow

Fiber Patch Cable 30M(98FT),2 Fibers, SC/APC DUPLEX, OS2 Single Mode, Riser(OFNR), 0.9MM, Yellow

Connector SC/APCFiber OS2, G.657.A1Length (m) 30.0Length (ft) 98.0Indoor/Outdoor indoor
Regular price $45.00 USD
Regular price Sale price $45.00 USD

SKU JMP-30MDUPLEX-APC-001

US shipping · 1–2 business days processing (Mon–Fri). Weekends may vary. · 30-day unused returns ·Shipping policy · Refund policy

Shipping calculated at checkout.

FIBER PATCH CABLE 30M(98FT),2 FIBERS,  SC/APC DUPLEX, SINGLEMODE (OS2), RISER (OFNR), 2.0MM, TIGHT-BUFFERED, YELLOW

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.

Specifications
Connector A - SC APC Duplex
Connector B - SC APC Duplex
Fiber Count - 2 Fibers
Fiber Grade - G.657.A1 (Compatible with G.652.D)
Fiber Mode - OS2 9/125μm
Wavelength - 1310/1550nm
Polarity - A (Tx) to B (Rx)
Cable Type - Tight-Buffered
Cable Outside Diameter (OD) - 2.0mm
Flame Rating - Riser (OFNR)
Min. Bend Radius (Optical Fiber) - 10mm
Min. Bend Radius (Fiber Cable) - 10/5D (Dynamic/Static)
Connector Durability - 1000 times
Tensile Strength (Long/Short Term) - 90/150N
Insertion Loss - ≤0.3dB
Return Loss - ≥50dB
Attenuation at 1310 nm - 0.36dB/km
Attenuation at 1550 nm -0.22dB/km
Operating Temperature - -20 to 70°C (-4 to 158℉)
Storage Temperature - -40 to 80°C (-40 to 176℉)




Connectivity Solutions




Features

Build a Stable and Robust Fiber Optic Network
High-quality tight-buffered cable protects the fiber optic core, and increases the strength and durability of the fiber.
Structural Diagram
Cross-section Diagram

Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.
The G.657.A1 fiber allows tighter cable bends for routing, and ensures low optical loss and stable transmission.
