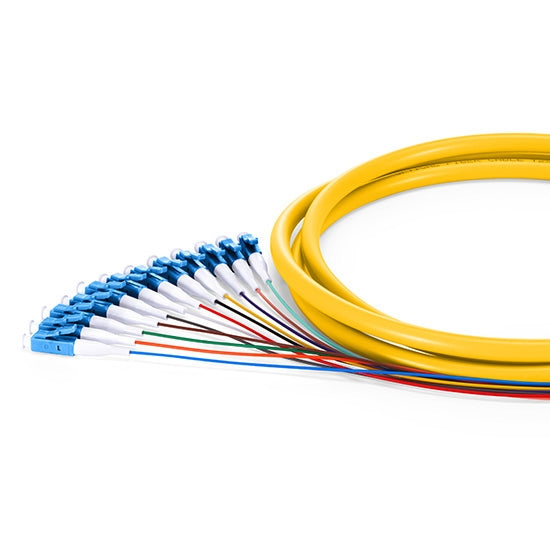

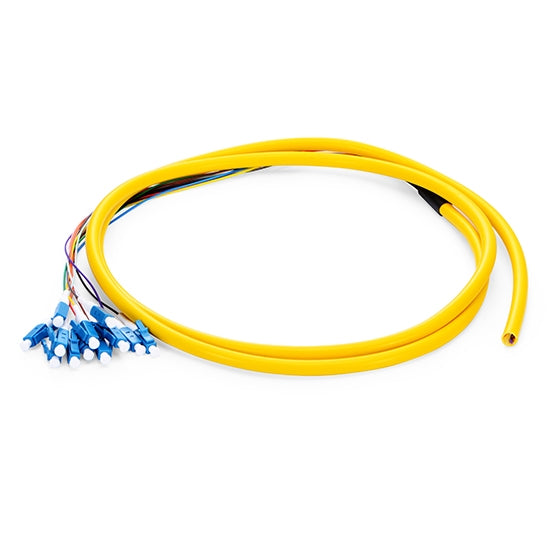

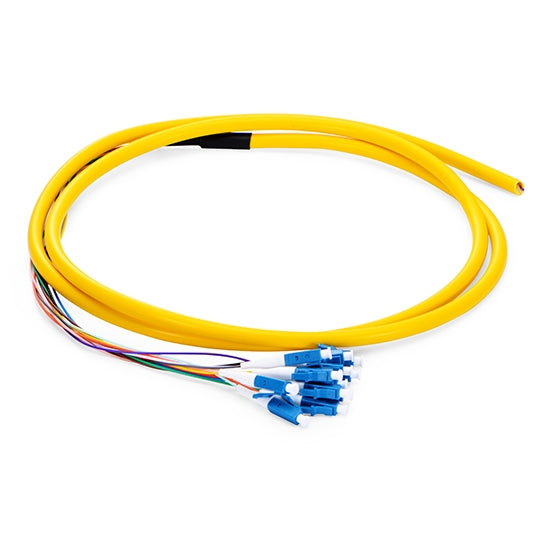

12 fiber optic pigtails are ideal for fusion splicing the required fiber connectivity for structured cabling systems including Data Centers, Broadband CATV, PON (Passive Optical Network), WDM or DWDM multiplexing, FTTH and voice services in ATM and SONET metropolitan and access networks.
The OS2 bend insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails and this will make the installation and maintenance more efficient.
Specifications
Connector A LC UPC Simplex
Connector B Unterminated
Fiber Count 12 Fibers
Fiber Grade G.657.A1
Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm
Jacket Color Yellow
Cable Type Tight-Buffered
Cable Outside Diameter (OD) 0.9mm
Cable Jacket PVC (Unrated)
Min. Bend Radius (Optical Fiber) 10mm
Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static)
Connector Durability 1000 Times
Tensile Strength (Long/Short Term) 200/660N
Attenuation at 1310nm 0.36dB/km
Attenuation at 1550nm 0.22dB/km
Insertion Loss ≤0.3dB
Return Loss ≥50dB
Vibration ≤0.2dB
Interchangeability ≤0.2dB
Operating Temperature -40 to 75°C (-40 to 167℉)
Storage Temperature -45 to 85°C (-49 to 185℉)
Connectivity Solutions
Features
Build a Stable and Robust Fiber Optic Network
High-quality tight-buffered fiber optic pigtail protects the fiber optic core, and is easy to strip for splicing.
Structural Diagram
Cross-section Diagram
High-precision Components Guarantee Reliable Transmission
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.
G.657.A1 low loss fiber and 10mm Min. bend radius provide improved flexibility for limited space setups.
The high-precision zirconia ceramic ferrule has a long life and ensures stability and interchangeability.

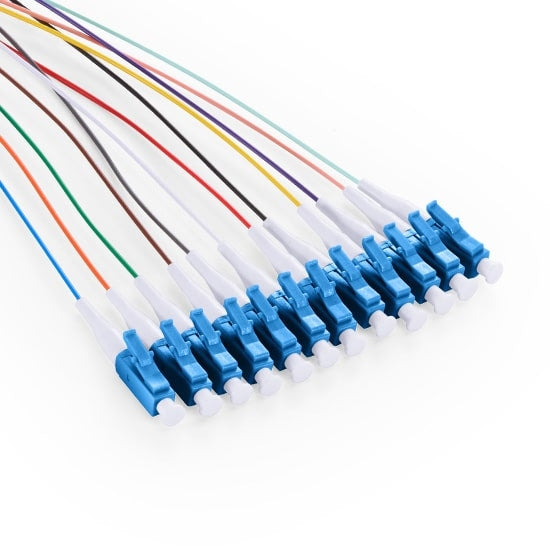

Color-Coded Cable Jacket for Easy Identification
A fiber optic pigtail's jacket color is typically defined by the fiber type, and can differ based on mode and performance level.
A Variety of Applications of Different Equipment
Optical fiber pigtails can be used in optical fiber communication systems optical fiber data transmission, optical fiber CATV, optical test equipment, fiber optic sensors, etc.
Fiber Terminal Box
FHD® Fiber Enclosure
How to Strip Fiber Optic Pigtail with Tri-Hole Fiber Stripper
Strip the 900μm buffer coating (With the second hole)
Down to the 250μm coating
Strip the 250μm coating (With the smallest hole)
