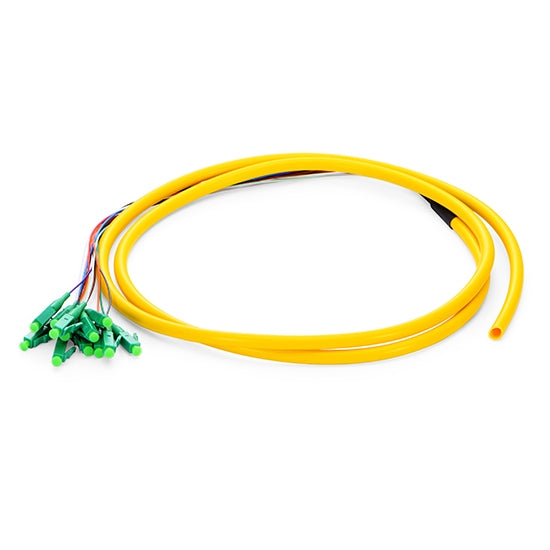

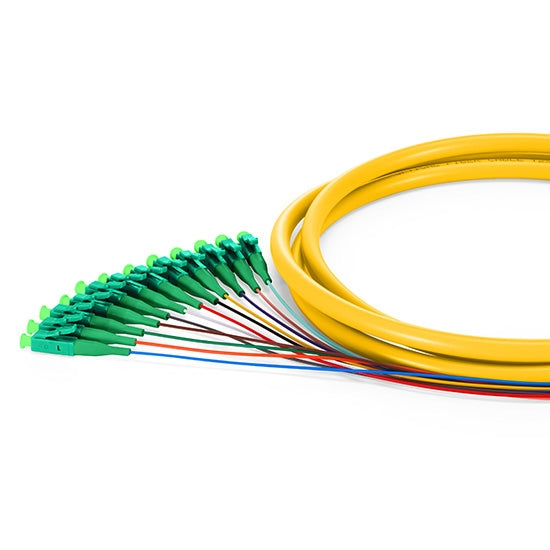

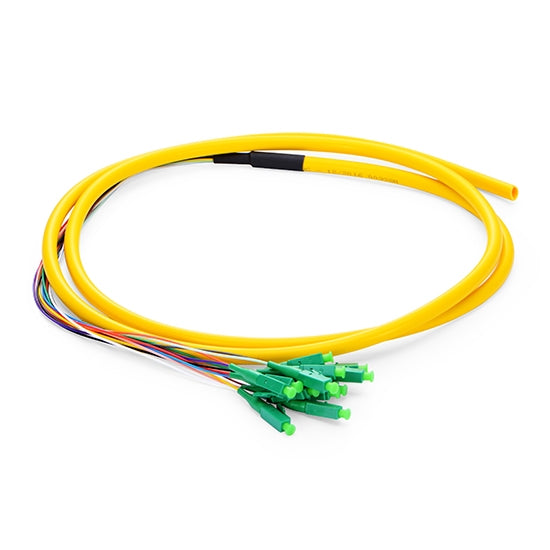

Fiber Pigtail 1M (3FT), LC/APC TO UNTERMINATED, 12 Fibers, Bunch, OS2 Single Mode, Riser(OFNR), 0.9MM, Yellow

Name: Fiber Pigtail 1M (3FT), LC/APC TO UNTERMINATED, 12 Fibers, Bunch, OS2 Single Mode, Riser(OFNR), 0.9MM, Yellow
Brand: OpticBuilds.com
SKU: JMP-LCAPC-1M-023
Price: 24.99 USD
Availability: InStock

$24.99 USD

~~$28.99 USD~~ $24.99 USD

Sale Sold out

Shipping calculated at checkout.

Fiber Pigtail, LC APC to Unterminated, 12 Fibers, Bunch, OS2, OFNR, 0.9mm, 1m (3ft)

12 fibers optic pigtails are ideal for fusion splicing the required fiber connectivity for structured cabling systems including Data Centers, Broadband CATV, PON (Passive Optical Network), WDM or DWDM multiplexing, FTTH and voice services in ATM and SONET metropolitan and access networks.
The OS2 bend insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails and this will make the installation and maintenance more efficient.

Specifications

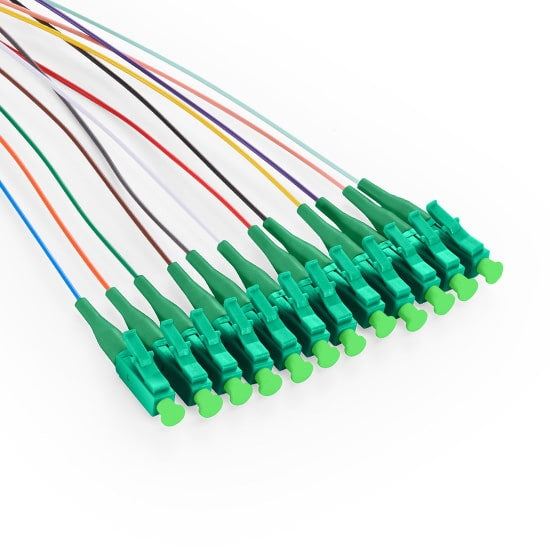

Connector A - LC APC Simplex

Connector B - Unterminated

Fiber Count - 12 Fibers

Fiber Grade - G.657.A1

Fiber Mode - OS2 9/125μm

Wavelength - 1310/1550nm

Jacket Color - Yellow

Cable Type - Tight-Buffered

Cable Outside Diameter (OD) - 0.9mm

Cable Jacket - Riser (OFNR)

Min. Bend Radius (Optical Fiber) - 10mm

Min. Bend Radius (Fiber Cable) - 10/5D (Dynamic/Static)

Connector Durability - 1000 Times

Tensile Strength (Long/Short Term) - 200/660N

Attenuation at 1310nm - 0.36dB/km

Attenuation at 1550nm - 0.22dB/km

Insertion Loss - ≤0.3dB

Return Loss - ≥60dB

Vibration - ≤0.2dB

Interchangeability - ≤0.2dB

Operating Temperature - -40 to 75°C (-40 to 167℉)

Storage Temperature - -45 to 85°C (-49 to 185℉)

Connectivity Solutions

1G Interconnect

Features

Build a Stable and Robust Fiber Optic Network

High-quality tight-buffered fiber optic pigtail protects the fiber optic core, and is easy to strip for splicing.

Structural Diagram

Cross-section Diagram

High-precision Components Guarantee Reliable Transmission

Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.

G.657.A1 low loss fiber and 10mm Min. bend radius provide improved flexibility for limited space setups.

The high-precision zirconia ceramic ferrule has a long life and ensures stability and interchangeability.

Color-Coded Cable Jacket for Easy Identification

A fiber optic pigtail's jacket color is typically defined by the fiber type, and can differ based on mode and performance level.

A Variety of Applications of Different Equipments

Optical fiber pigtails can be used in optical fiber communication systems optical fiber data transmission, optical fiber CATV, optical test equipment, fiber optic sensors, etc.
