Fiber capacity: 24–288 fibers maximum, depending on model
Splice trays: 12/24-fiber trays; maximum tray count varies by model (see table)
Cable ports: 2 Port, 2in 2out, 3in 3out, 4 Port, 4in 4out, 6 Port depending on model
Sealing: silicone gum, sticky cincture
Dimensions: listed per model in the table below
Compare models
Model
Max fibers
Splice trays (max × capacity)
Cable ports
Cable diameter
Sealing
Dimensions
TW-GJS(04)-1
96
4 × 24-fiber
2in 2out
10-17mm
Sticky cincture
435 × 190 × 85 mm
TW-GJS(04)-2
144
6 × 24-fiber
2in 2out
10-22mm
Sticky cincture
435 × 190 × 120 mm
TW-GJS(04)-3
192
8 × 24-fiber
2in 2out
10-22mm
Sticky cincture
435 × 190 × 120 mm

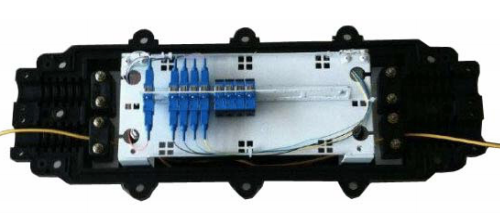

TW-GJS(04)-3Y
144
6 × 24-fiber
2in 2out
10-22mm
Sticky cincture
480 × 180 × 120 mm
TW-GJS(04)-6
48
2 × 24-fiber
2in 2out
10-12mm
Sticky cincture
430 × 140 × 75 mm
TW-GJS(04)-5C
24
1 × 24-fiber
2in 2out
10-12mm
silicon gum material
200 × 220 × 43 mm
TW-GJS(04)-5D
24
1 × 24-fiber
2in 2out
7-10mm
silicon gum material
245 × 150 × 30 mm
TW-GJS(04)-5E
96
4 × 24-fiber
2in 2out
10-22mm
silicon gum material
355 × 180 × 65 mm
TW-GJS(04)-7
288
12 × 24-fiber
4in 4out
10-22mm
Sticky cincture
435 × 190 × 170 mm

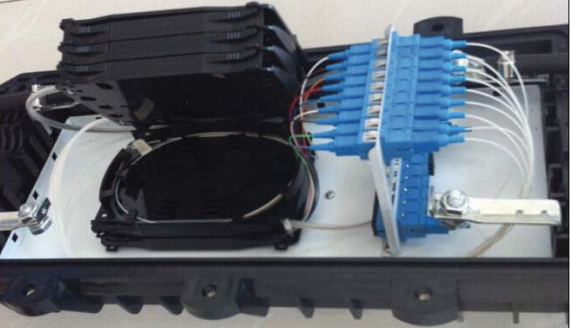

TW-GJS(04)-7B
192
8 × 24-fiber
4in 4out
10-22mm
Sticky cincture
470 × 240 × 120 mm
TW-GJS(04)-8
96
4 × 24-fiber
3in 3out
10-22mm
Sticky cincture
420 × 150 × 110 mm
TW-GJS(04)-8KS
96
4 × 24-fiber
2in 2out
10-17mm
silicon gum material
420 × 185 × 120 mm
TW-GJS(05)-1
96
4 × 24-fiber
2in 2out
10-22mm
Sticky cincture
485 × 165 × 110 mm
TW-GJS(05)-2
144
6 × 24-fiber
2in 2out
10-22mm
Sticky cincture
580 × 185 × 125 mm
TW-GJS(05)-3
192
8 × 24-fiber
2in 2out
10-22mm
Sticky cincture
655 × 215 × 185 mm
TW-GJS(06)-A
144
6 × 24-fiber
2in 2out
7-15mm
silicon gum material
360 × 260 × 120 mm
TW-GJS-H001
96
4 × 24-fiber
3in 3out
7-16mm
silicon gum material
390×210×120 mm
TW-GJS-H002
96
4 × 24-fiber
6 Port
8-20mm
silicon gum material
320×210×85 mm
TW-GJS-H003
96
4 × 24-fiber
2 Port
8-14mm
silicon gum material
280×200×90 mm
TW-GJS-H004
96
4 × 24-fiber
6 Port
8-20mm
silicon gum material
450×220×110 mm
TW-GJS-H007
96
8 × 12-fiber
6 Port
8-20mm
silicon gum material
450×220×110 mm
TW-GJS-H008
96
8 × 12-fiber
6 Port
8-20mm
silicon gum material
390 × 210 × 120 mm

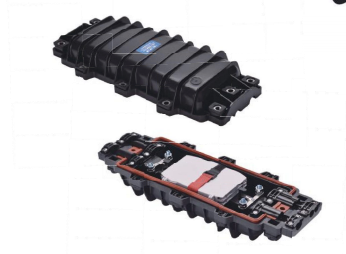

TW-GJS-H009
96
8 × 12-fiber
6 Port
8-20mm
silicon gum material
470×180×125 mm
TW-GJS-H010
96
8 × 12-fiber
6 Port
8-20mm
silicon gum material
425×180×125 mm
TW-GJS-H011
96
4 × 24-fiber
8-20mm
silicon gum material
340×150×70 mm
TW-GJS-H015
96
4 × 24-fiber
6 Port
8-20mm
silicon gum material
460×182×120 mm
TW-GJS-H018
96
4 × 24-fiber
4 Port
8-20mm
silicon gum material
460 × 182 × 120 mm
Specs from the manufacturer (Twilight Optic) spec sheet. Blank = not published. Mounting hardware and included accessories are not listed on the manufacturer sheet; contact us to confirm before ordering.
30 - 45 days but often sooner.
Full payment at checkout. Contact [email protected] for lead-time questions or volume orders.
