About this item

Visual Fault Locator, Red Light Pen Style Fiber Optic Cable Tester Meter, Cable Test Equipment Suitable for 2.5 mm Connector, Telecommunications Engineering 30mW BATTERIES INCLUDED

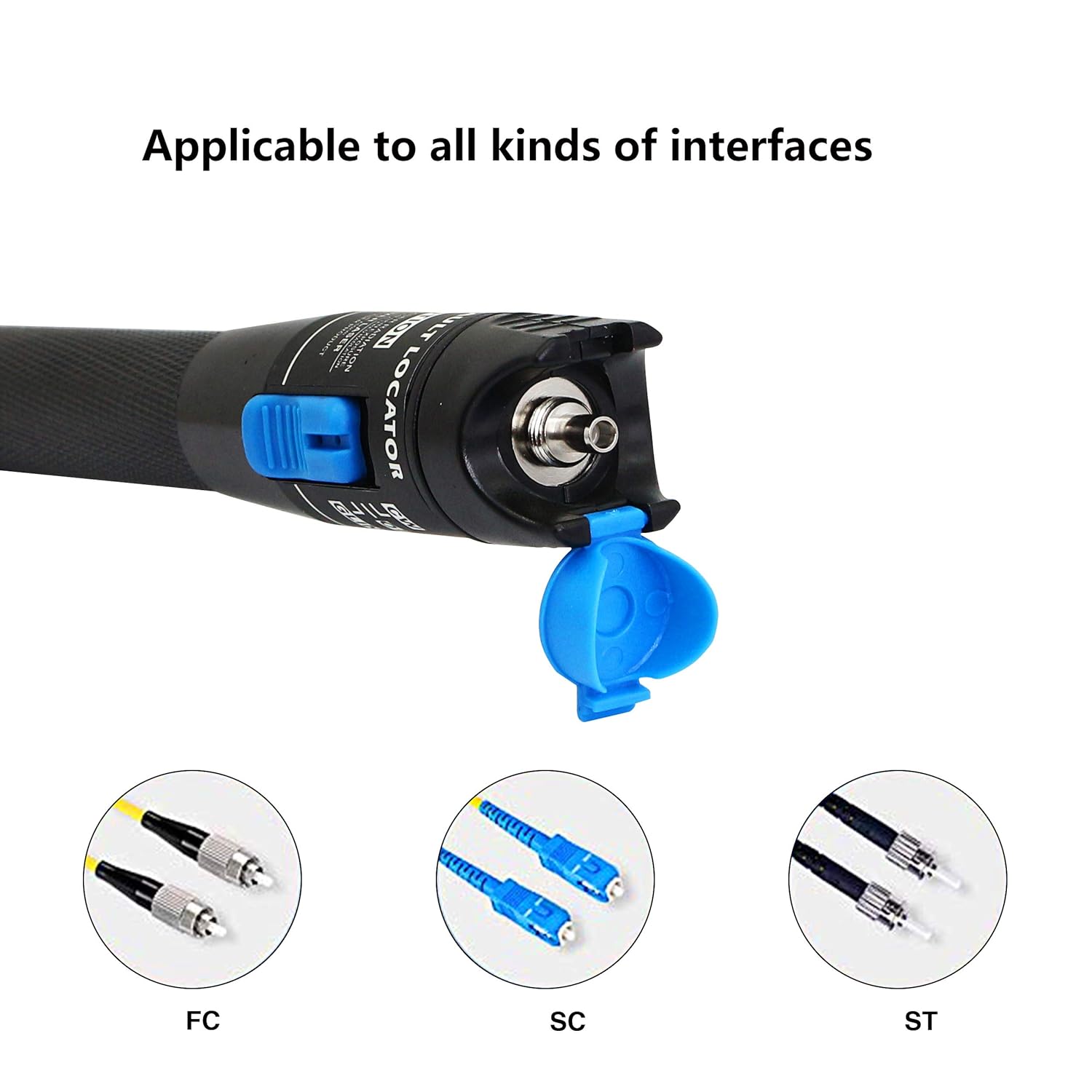

• The 2.5mm universal connector of the detector is compatibly designed for ST, SC, FC interferes both in circle and square shape of different fiber optic cables. Test for both single-mode and multi-mode cables. Suitable for tester Meter 3/6.2/11.2/13.6/15.5/18.6
• This Visual Fault Locator will emit a 650nm bright red light which has strong penetrating power, so that the leakage light at fault area is clearly visible

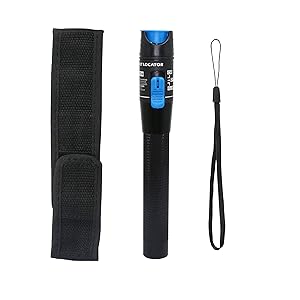

• Small size and lightweight. Pen-type design with pouch make it portable
• High quality pen type visual fault locator Easy identification of poor connections, bending or cracking in fiber optic cables
• Material: aluminum

Technical Parameters

Model Number Suffix:HT-1

Output optical power:＞1mW

Output wavelength:650nm±10nm

Fiber optic adapter - Universal connector

Use temperature:0℃~60℃

Storage temperature:-20℃~70℃

Battery type:5 alkaline battery（2）

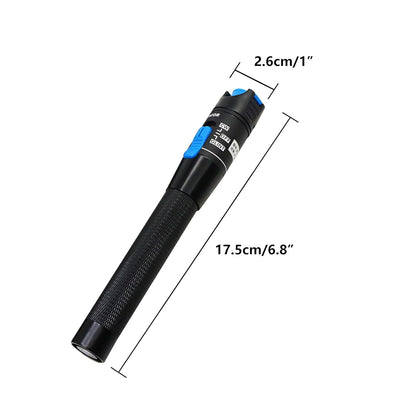

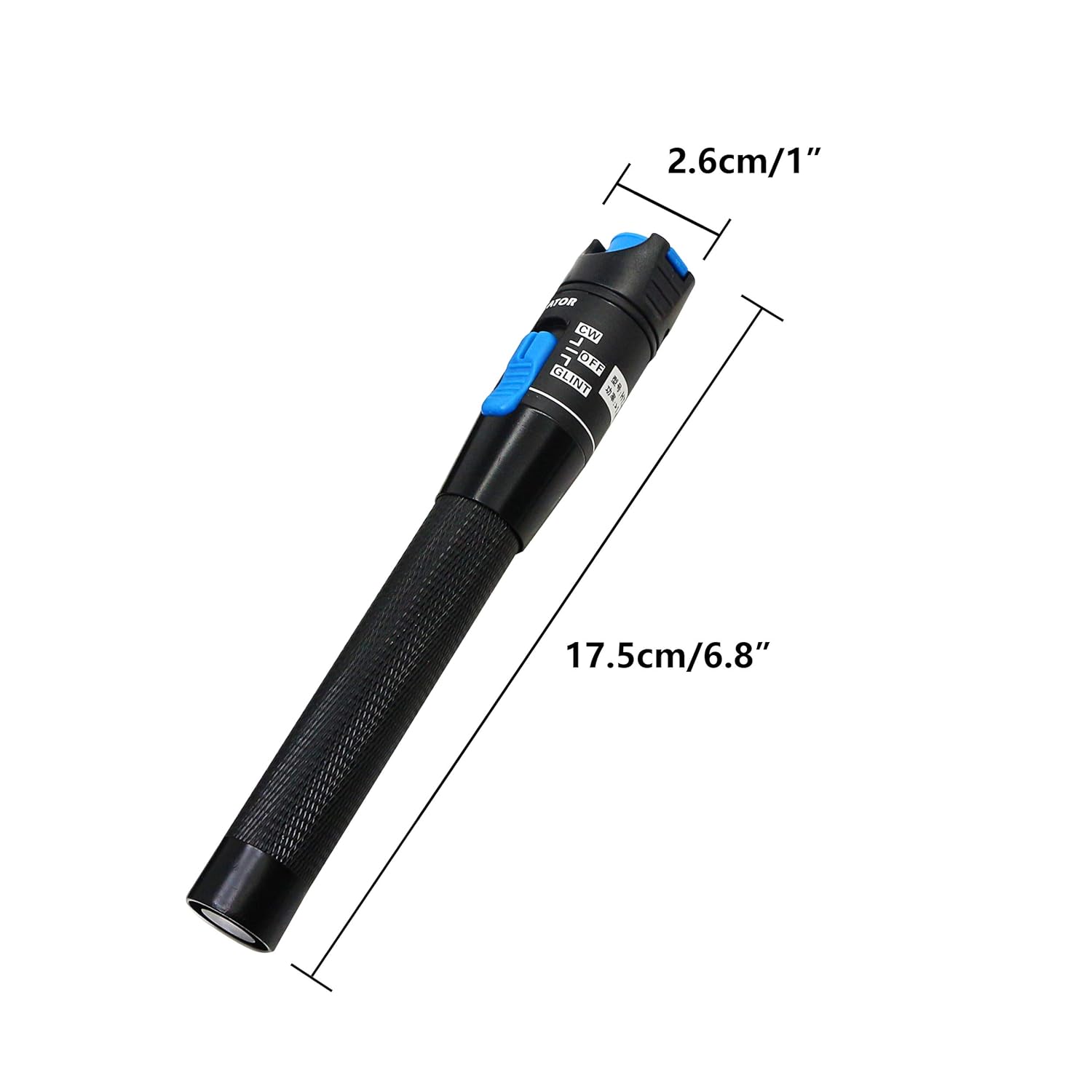

Appearance:175mm*26mm*26mm

Weight:160g
